Galvanized Drop Forged Bolt Type Shackles Dee Type

Galvanized Drop Forged Bolt Type Shackles Dee Type

SKU:WIR-06be11

Meet federal specifications with these Galvanized Drop Forged Shackles for safe and reliable lifting.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Galvanized Drop Forged Bolt Type Shackles Dee Type

Galvanized Drop Forged Bolt Type Shackles Dee Type

$299.99

Quantity: 1

Claim Your Seller Account

Galvanized Drop Forged Bolt Type Shackles Dee Type

Galvanized Drop Forged Bolt Type Shackles Dee Type

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

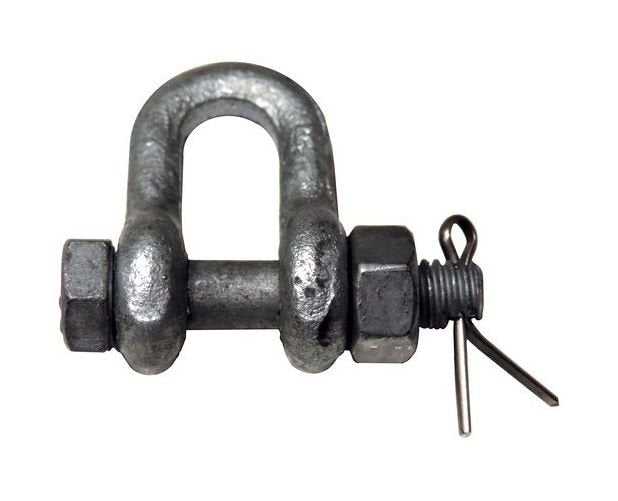

The Galvanized Drop Forged Bolt Type Shackles Dee Type are designed to meet the highest standards, conforming to Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3. These shackles are quenched and tempered with an alloy pin, ensuring reliable performance. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, these shackles offer exceptional safety and strength. Ideal for lifting or towing applications, these shackles are a dependable choice for demanding tasks.

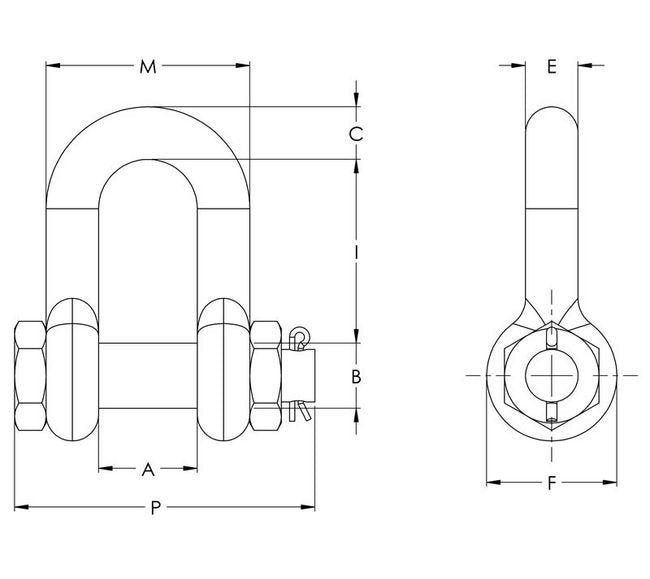

Product Specifications

Specifications A In
5
Specifications B In
3.25
Specifications C In
3.62
Specifications D In
13
Specifications E In
3
Specifications F In
6.5
Specifications I In
8.5
Specifications M In
11
Specifications Nominal Size In
3
Specifications P In
16.5
Specifications Weight Lbs
124.25
Specifications Wll Tons
85
CAGE
0T9L4
NAICS
332722
PSC
5306
