Galvanized Drop Forged Chain Shackles

Galvanized Drop Forged Chain Shackles

SKU:WIR-f9e14c

Meet Federal Spec RR-C-271D. 1.5-ton WLL. Quenched & tempered. Ideal for lifting & towing.

Regular price $15.99
Regular price Sale price $15.99
Sale

Initiate Order

Galvanized Drop Forged Chain Shackles

Galvanized Drop Forged Chain Shackles

$15.99

Quantity: 1

Claim Your Seller Account

Galvanized Drop Forged Chain Shackles

Galvanized Drop Forged Chain Shackles

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

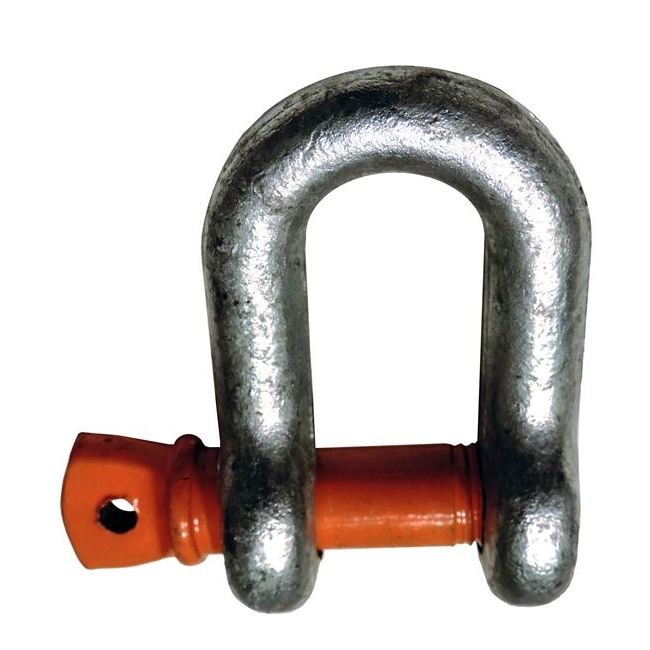

The Galvanized Drop Forged Chain Shackles Screw Pin are crafted to meet stringent Federal Specification RR-C-271D, Type IVB, Grade A, Class 2 standards. With an exceptional 1.5-ton Working Load Limit (WLL), these shackles ensure superior lifting and towing tasks. Quenched, tempered, and equipped with an alloy pin for added durability. Featuring an ultimate load capacity of 6 times the WLL for maximum safety and reliability. Ideal for wire rope loops, these shackles are a trusted choice for heavy-duty applications.

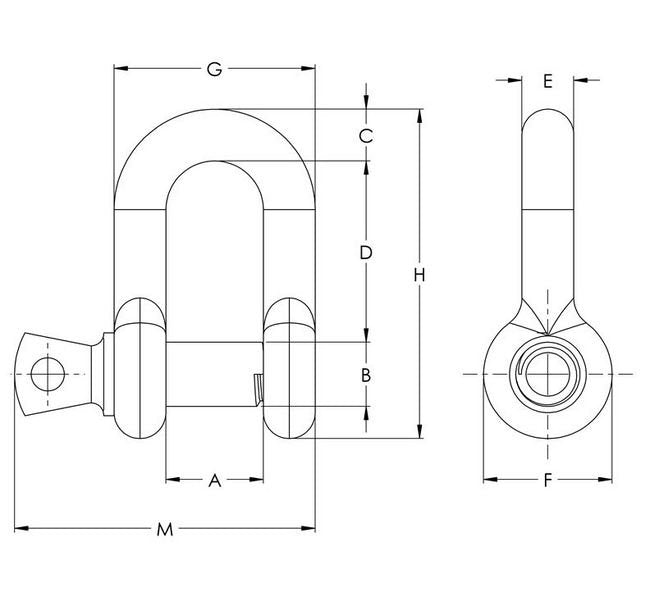

Product Specifications

Specifications A In
0.75
Specifications B In
0.5
Specifications C In
0.44
Specifications D In
1.44
Specifications E In
0.44
Specifications F In
1.06
Specifications G In
1.63
Specifications H In
2.66
Specifications M In
2.38
Specifications Nominal Size In
7/16
Specifications Weight Lbs
0.43
Specifications Wll Tons
1.5
CAGE
0T9L4
NAICS
332999
PSC
5340
