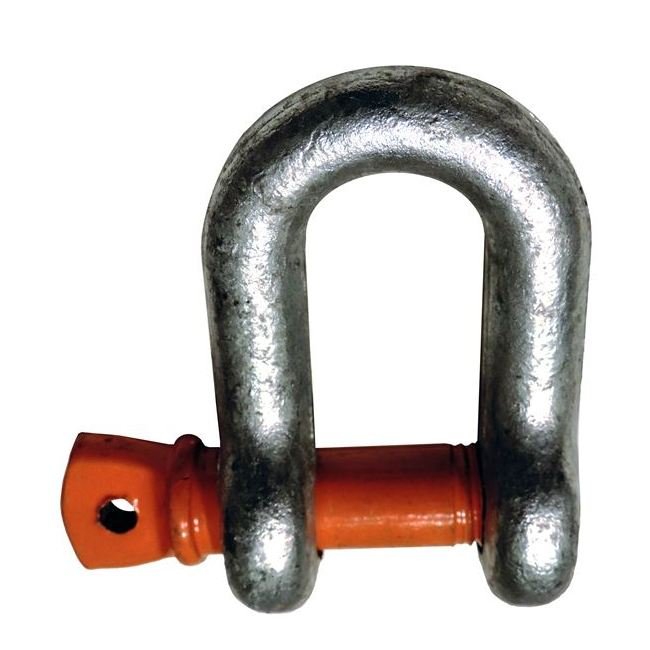

Galvanized Drop Forged Chain Shackles Screw Pin
Galvanized Drop Forged Chain Shackles Screw Pin
SKU:WIR-1bdc2b
Meet Federal Standard RR-C-271D with our Galvanized Drop Forged Chain Shackles Screw Pin. Ultimate strength for lifting and towing needs.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Galvanized Drop Forged Chain Shackles Screw Pin
$25.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Chain Shackles Screw Pin
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Chain Shackles Screw Pin is designed to meet Federal Specification RR-C-271D, Type IVB, Grade A, Class 2 standards. With an ultimate load 6 times its working load limit, this shackle ensures exceptional strength and safety. Quenched, tempered, and featuring an alloy pin for durability, it also boasts a proof load of 2.2 times the working load limit. Perfect for lifting or towing applications on wire rope loops.
Ready to Grow Without Cash Flow Constraints?

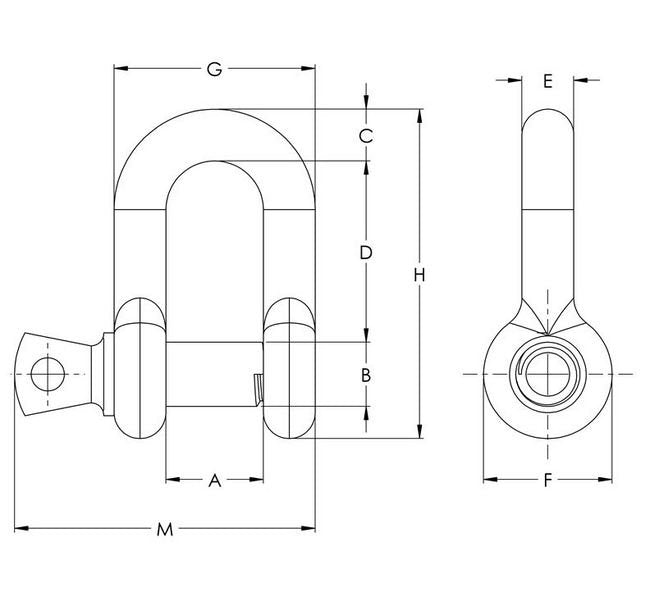

Product Specifications
Specifications A In
0.81
Specifications B In
0.63
Specifications C In
0.5
Specifications D In
1.63
Specifications E In
0.5
Specifications F In
1.19
Specifications G In
1.81
Specifications H In
3.03
Specifications M In
2.69
Specifications Nominal Size In
1/2
Specifications Weight Lbs
0.59
Specifications Wll Tons
2
CAGE
0T9L4
NAICS
332999
PSC
5340
