Galvanized Drop Forged Round Pin Anchor Shackle
Galvanized Drop Forged Round Pin Anchor Shackle
SKU:WIR-2c5b50
Durable Galvanized Drop Forged Round Pin Anchor Shackle meeting Federal Specifications RR-C-271D Type IVA. Ideal for lifting and towing applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Galvanized Drop Forged Round Pin Anchor Shackle
$149.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Round Pin Anchor Shackle
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

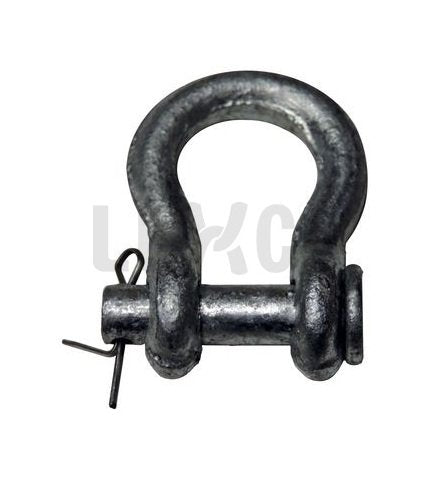

The Galvanized Drop Forged Round Pin Anchor Shackle is a versatile hardware tool made in the USA by Chicago Hardware & Fixture Company. It features a self-colored or hot galvanized finish for enhanced durability. This shackle is heat-treated and marked with size, working load limit, and trademark for easy identification. Ideal for wire rope loops, it meets Federal Specifications RR-C-271D Type IVA. Safety shackles offer added protection. With a 6 to 1 safety factor, these shackles provide reliable performance for lifting and towing applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Length C
4-1/2"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
3"
Specifications Pin Or Bolt Diameter E
1-3/8"
Specifications Size Dia
1-1/4"
Specifications Width Bow B
3-1/4"
Specifications Width Eyes A
2"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
12
Specifications Wt Per 100 Pcs Lbs
1007.5
CAGE
0T9L4
NAICS
332999
PSC
5340
