Galvanized Drop Forged Round Pin Anchor Shackle - Chicago Hardware & Fixture Co.

Name: Galvanized Drop Forged Round Pin Anchor Shackle - Chicago Hardware & Fixture Co.
Brand: Lexco Cable Manufacturing
SKU: WIR-9cc0f5
Price: 389.99 USD
Availability: OutOfStock

SKU:WIR-9cc0f5

Durable Galvanized Drop Forged Round Pin Anchor Shackle, Chicago Hardware & Fixture Co. - Meets Federal Specs RR-C-271D, Ideal for Lifting/Towing

$389.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

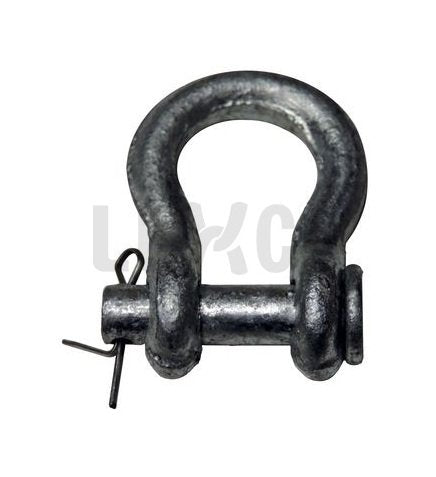

The Galvanized Drop Forged Round Pin Anchor Shackle by Chicago Hardware & Fixture Company is designed for exceptional durability and safety. Available in self-colored or hot galvanized finishes, these shackles are heat-treated and meet Federal Specifications RR-C-271D Type IVA. Safety shackles with marked working load limits ensure reliable performance, making them ideal for lifting and towing applications. With a 6 to 1 safety factor, these shackles are engineered for strength and reliability in demanding environments.

Product Specifications

Specifications Length C

5-1/4"

Specifications Length Tolerance

1/4"

Specifications Od Eyes D

3-1/4"

Specifications Pin Or Bolt Diameter E

1-1/2"

Specifications Size Dia

1-3/8"

Specifications Width Bow B

3-1/2"

Specifications Width Eyes A

2-1/4"

Specifications Width Tolerance

1/8"

Specifications Wll Tons

13 1/2

Specifications Wt Per 100 Pcs Lbs

1232.5

CAGE

0T9L4

NAICS

332999

PSC

5340
