Galvanized Drop Forged Round Pin Chain Shackle - 1" Diameter, 8-1/2 Ton WLL
Galvanized Drop Forged Round Pin Chain Shackle - 1" Diameter, 8-1/2 Ton WLL
SKU:WIR-5bee60
Premium USA-made Galvanized Chain Shackle for wire rope applications. 1" Diameter, 8-1/2 Ton WLL.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Galvanized Drop Forged Round Pin Chain Shackle - 1" Diameter, 8-1/2 Ton WLL
$789.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Round Pin Chain Shackle - 1" Diameter, 8-1/2 Ton WLL
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Round Pin Galvanized Drop Forged Chain Shackle by Chicago Hardware & Fixture Company is a heavy-duty shackle designed for superior strength and durability. With a 1" Diameter and a Working Load Limit of 8-1/2 Tons, this shackle is ideal for wire rope applications. Made in the USA, it meets stringent quality standards for reliable performance in industrial and commercial settings.

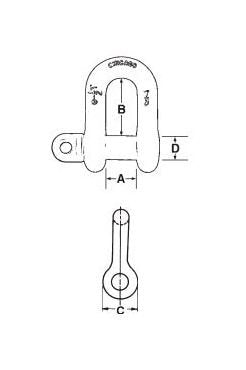

Product Specifications
Specifications Od Eyes C
2-1/2"
Specifications Pin Or Bolt Diameter D
1-1/8"
Specifications Size Dia
1"
Specifications Width Eyes A
1-11/16"
Specifications Wll
8-1/2 Ton
Specifications Wt Per 100 Pcs Lbs
500
CAGE
0T9L4
NAICS
332999
PSC
5340
