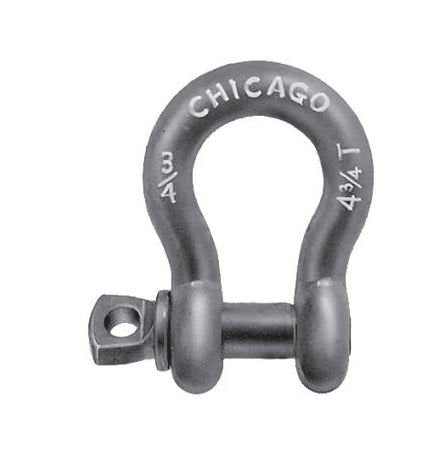

Galvanized Drop Forged Screw Pin Anchor Shackle

Name: Galvanized Drop Forged Screw Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-d7f1e0
Price: 899.99 USD
Availability: OutOfStock

SKU:WIR-d7f1e0

Heavy-duty Galvanized Screw Pin Anchor Shackle, WLL 9-1/2 Ton, Made in USA, Chicago Hardware & Fixture

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Drop Forged Screw Pin Anchor Shackle is a robust and reliable wire rope hardware essential. With a Size Dia of 1-1/8" and a Working Load Limit (WLL) of 9-1/2 Ton, it is designed for heavy-duty applications. Manufactured by Chicago Hardware & Fixture Company in the USA, this shackle ensures superior quality and durability. Its wide Width @ Eyes A and sturdy construction make it ideal for securing loads in industrial settings.

Product Specifications

Specifications Od Eyes D

2-5/8"

Specifications Pin Or Bolt Diameter E

1-1/4"

Specifications Size Dia

1-1/8"

Specifications Width Eyes A

1-13/16"

Specifications Wll

9-1/2 Ton

Specifications Wt Per 100 Pcs Lbs

765

CAGE

0T9L4

NAICS

332999

PSC

5340

Galvanized Drop Forged Screw Pin Anchor Shackle
