Galvanized Drop Forged Turnbuckle
Galvanized Drop Forged Turnbuckle
SKU:WIR-af2a7b
Meet standards with the Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye. Strong, reliable, and compliant with Federal Spec FF-T-791b.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle
$35.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

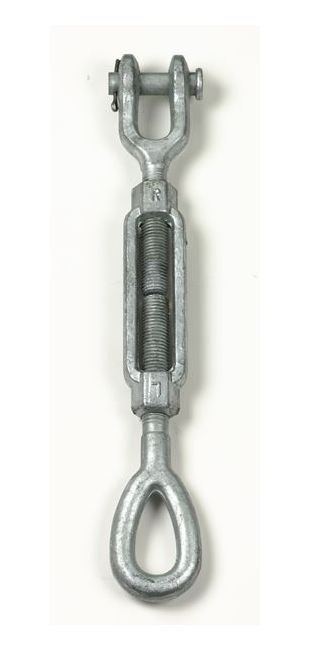

The Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye is a durable and reliable wire rope hardware essential designed to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards. With quenched and tempered end fittings and normalized bodies, this turnbuckle ensures superior strength and performance. It features a 2.5 times proof load compared to the working load limit, with an ultimate load of 5 times the working load limit, providing added safety and security for diverse applications. The dimensions, approximations, and detailed technical specifications make it an ideal choice for industrial and institutional procurement needs.

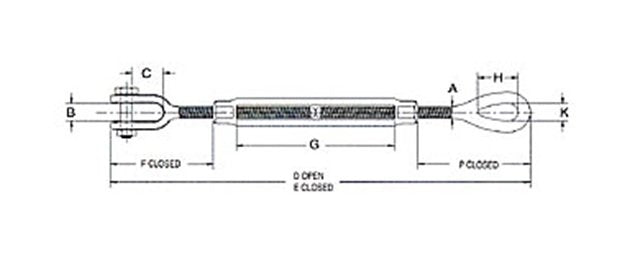

Product Specifications
Specifications A
0.38
Specifications B
0.5
Specifications C Closed
0.87
Specifications D Open
17.77
Specifications E Closed
11.77
Specifications F
2.12
Specifications G
6
Specifications H
1.12
Specifications K
0.53
Specifications Pin Diameter In
5/16
Specifications P Closed
2.52
Specifications Thread Dia Take Up In
3/8 x 6
Specifications Weight
0.76
Specifications Wll Lbs
1,200
