Galvanized Drop Forged Turnbuckle 3/4'' x 12'' Hook & Hook
Galvanized Drop Forged Turnbuckle 3/4'' x 12'' Hook & Hook
SKU:WIR-9c069b
High-quality Galvanized Turnbuckle 3/4'' x 12'' Hook & Hook meeting Federal Specification FF-T-791b for superior strength and durability.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle 3/4'' x 12'' Hook & Hook
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle 3/4'' x 12'' Hook & Hook
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

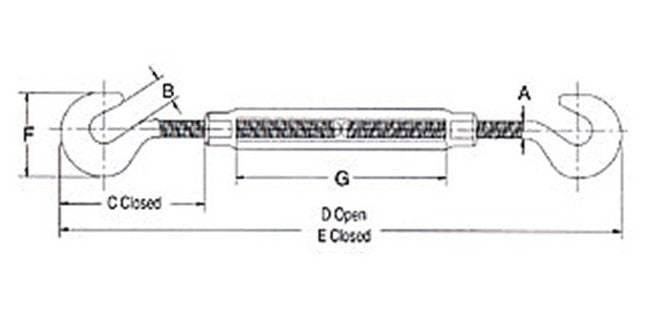

The Galvanized Drop Forged Turnbuckle 3/4'' x 12'' Hook & Hook is designed to meet the rigorous standards of Federal Specification FF-T-791b, Type 1, Form 1 - Class 5. This durable turnbuckle is hot dip galvanized for enhanced corrosion resistance, making it ideal for both indoor and outdoor applications. The end fittings are quenched and tempered for increased strength, while the bodies are normalized for added durability. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle offers reliable performance and safety. Dimensions approximately: A - 0.75'', B - 0.98'', C Closed - 4.52'', D Open - 35.28'', E Closed - 23.28'', F - 3.33'', G - 12''.
Product Specifications
Specifications A
0.75
Specifications B
0.98
Specifications C Closed
4.52
Specifications D Open
35.28
Specifications E Closed
23.28
Specifications F
3.33
Specifications G
12
Specifications Thread Dia Take Up In
3/4 x 12
Specifications Weight
5.43
Specifications Wll Lbs
3000
