Galvanized Drop Forged Turnbuckle Body, 1-1/4 x 12
Galvanized Drop Forged Turnbuckle Body, 1-1/4 x 12
SKU:WIR-1b7ce3
High-strength Hot Dip Galvanized Turnbuckle Body, 15200lbs WLL, precise dimensions for secure fastening
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Body, 1-1/4 x 12
$89.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Body, 1-1/4 x 12
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

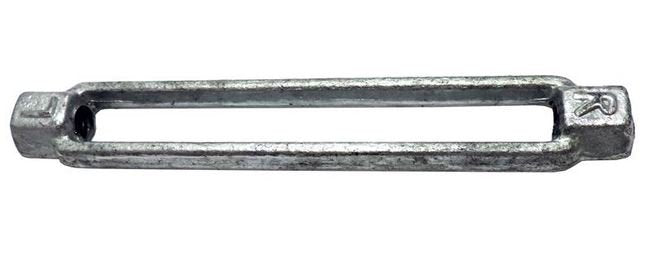

The Hot Dip Galvanized Drop Forged Turnbuckle Body offers exceptional strength and durability, meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 2 standards. With a Working Load Limit (WLL) of 15200 lbs, this turnbuckle body is designed for heavy-duty wire rope applications. Its hot-dip galvanized finish ensures corrosion resistance, making it ideal for outdoor and marine environments. Precision normalized dimensions, including Thread Dia & Take Up of 1-1/4 x 12 inches, ensure a secure and reliable connection.

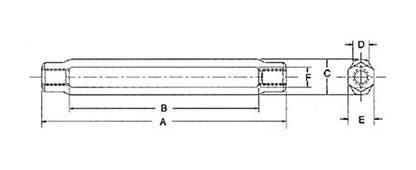

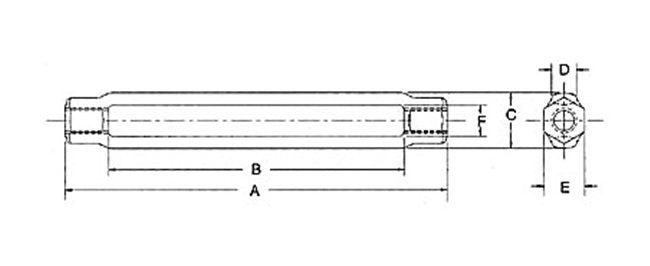

Product Specifications
Specifications A
15.12
Specifications B
12
Specifications C
2.62
Specifications D
1.25
Specifications E
1.88
Specifications F
1.5
Specifications Thread Dia Take Up In
1-1/4 x 12
Specifications Weight
5.25
Specifications Wll Lbs
15200
