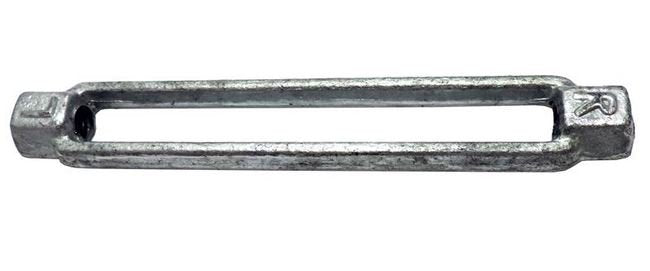

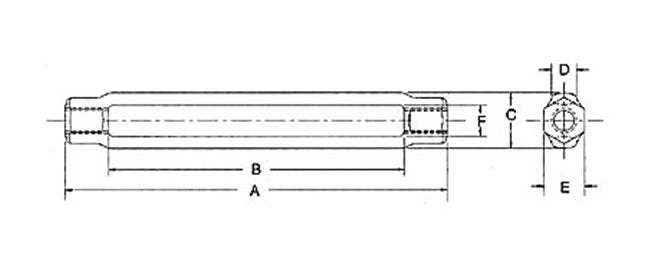

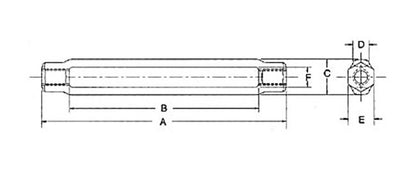

The Galvanized Drop Forged Turnbuckle Body is a high-quality component that meets Federal Specification FF-T-791b, Type 1, Form 1 - Class 2 standards. Designed for reliability and durability, this turnbuckle body is hot dip galvanized for enhanced corrosion resistance. With a Working Load Limit of 5200lbs, this body ensures secure and dependable performance for heavy-duty applications. Normalize your operations with the precision-engineered dimensions, approximately 14.25" (A), 12" (B), 1.69" (C), 0.75" (D), 1.12" (E), 0.94" (F).
Product Specifications
Specifications A
14.25
Specifications B
12
Specifications C
1.69
Specifications D
0.75
Specifications E
1.12
Specifications F
0.94
Specifications Thread Dia Take Up In
3/4 x 12
Specifications Weight
2.08
Specifications Wll Lbs
5200
