Galvanized Drop Forged Turnbuckle Body - 5/8" x 12"
Galvanized Drop Forged Turnbuckle Body - 5/8" x 12"
SKU:WIR-0cfade
High-strength Galvanized Turnbuckle Body - WLL 3500 lbs, FF-T-791b Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Body - 5/8" x 12"
$29.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Body - 5/8" x 12"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

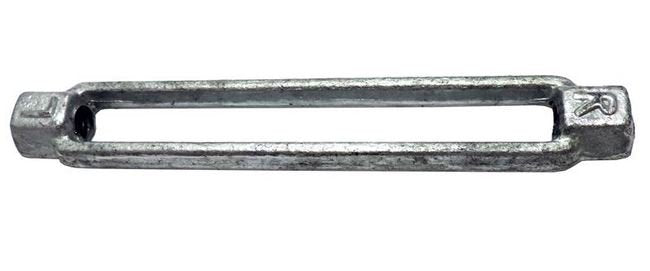

The Galvanized Drop Forged Turnbuckle Body is engineered for superior strength and performance, meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 2. Hot dip galvanized for corrosion resistance, this turnbuckle body has a Working Load Limit (WLL) of 3500 lbs, ensuring reliability in heavy-duty applications. With precise dimensions and normalized bodies, it offers exceptional durability and longevity for wire rope tensioning tasks.

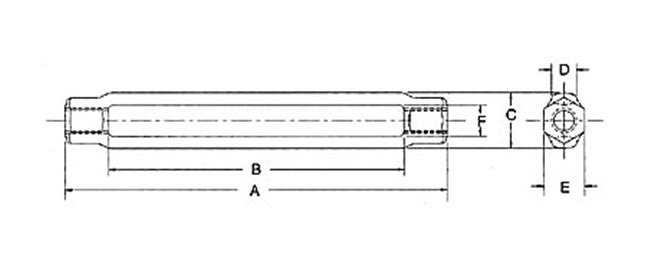

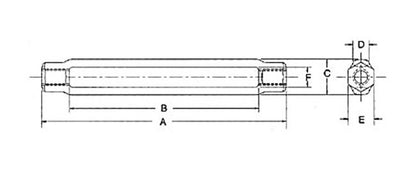

Product Specifications
Specifications A
13.88
Specifications B
12
Specifications C
1.38
Specifications D
0.62
Specifications E
1
Specifications F
0.75
Specifications Thread Dia Take Up In
5/8 x 12
Specifications Weight
1.43
Specifications Wll Lbs
3500
