Galvanized Drop Forged Turnbuckle Body - Hot Dip, FF-T-791b Compliant
Galvanized Drop Forged Turnbuckle Body - Hot Dip, FF-T-791b Compliant
SKU:WIR-6569c1
High-performance Galvanized Turnbuckle Body, FF-T-791b Compliant, 15200 lbs WLL, ideal for wire rope applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Body - Hot Dip, FF-T-791b Compliant
$89.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Body - Hot Dip, FF-T-791b Compliant
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

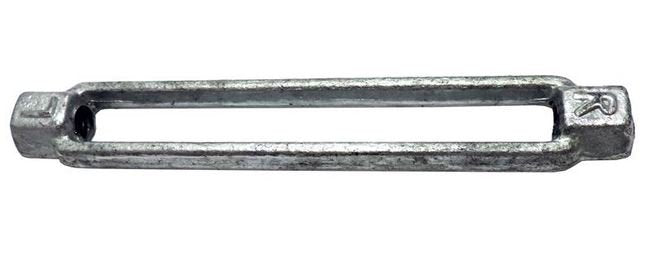

The Galvanized Drop Forged Turnbuckle Body, hot dip galvanized for superior corrosion resistance, meets Federal Specification FF-T-791b, Type 1, Form 1 - Class 2 standards. With a working load limit of 15200 lbs, this body-only component ensures durability and reliability. Normalized and precision-engineered, its dimensions include Thread Dia & Take Up of 1-1/4 x 24 inches, offering exceptional performance in wire rope applications.
Ready to Grow Without Cash Flow Constraints?

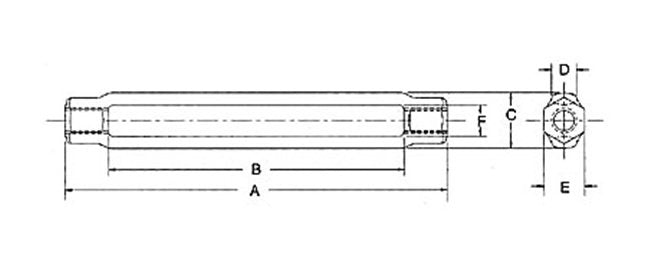

Product Specifications
Specifications A
27.12
Specifications B
24
Specifications C
2.62
Specifications D
1.25
Specifications E
1.88
Specifications F
1.5
Specifications Thread Dia Take Up In
1-1/4 x 24
Specifications Weight
10.17
Specifications Wll Lbs
15200
