Galvanized Drop Forged Turnbuckle Body Only, Federal Spec FF-T-791b Compliant
Galvanized Drop Forged Turnbuckle Body Only, Federal Spec FF-T-791b Compliant
SKU:WIR-fab570
High-quality Galvanized Turnbuckle Body with Federal Spec FF-T-791b Compliance
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Body Only, Federal Spec FF-T-791b Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Body Only, Federal Spec FF-T-791b Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

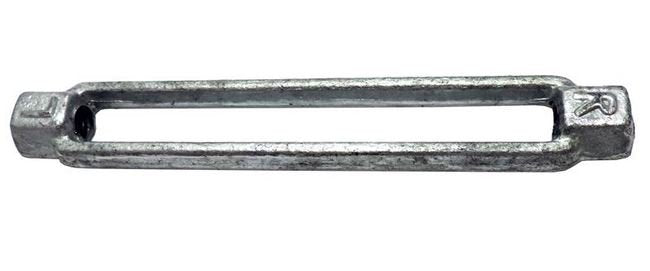

Enhance your wire rope assemblies with our Hot Dip Galvanized Drop Forged Turnbuckle Body. This high-quality component conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 2 for reliable performance and durability. With a Thread Dia & Take Up of 5/16 x 4-1/2 and a Working Load Limit of 800 lbs, this turnbuckle body is designed for maximum strength. Its normalized body construction, along with precise dimensions, ensures safety and efficiency in various applications.

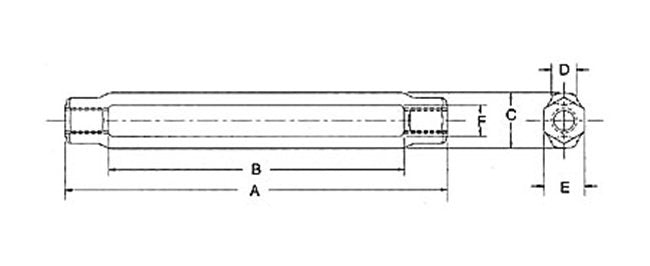

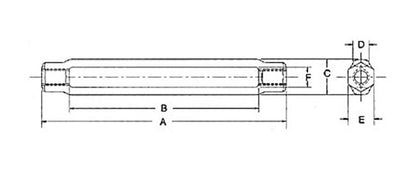

Product Specifications
Specifications A
5.44
Specifications B
4.5
Specifications C
0.81
Specifications D
0.38
Specifications E
0.56
Specifications F
0.44
Specifications Thread Dia Take Up In
5/16 x 4-1/2
Specifications Weight
0.19
Specifications Wll Lbs
800
