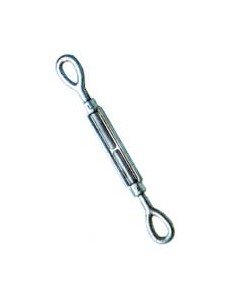

Galvanized Drop Forged Turnbuckle Eye & Eye, 1 inch x 12 inches
Galvanized Drop Forged Turnbuckle Eye & Eye, 1 inch x 12 inches
SKU:WIR-a7c169
High-strength Hot Dip Galvanized Turnbuckle Eye & Eye, meets FF-T-791b specs, 2.5x WLL, ideal for heavy-duty tasks.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Eye & Eye, 1 inch x 12 inches
$89.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Eye & Eye, 1 inch x 12 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye is a rugged and reliable hardware essential. Meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards, this turnbuckle features quenched and tempered end fittings, normalized bodies, and a 2.5 times working load limit for enhanced safety. With dimensions approximately 39.97" (D Open) by 27.72" (E Closed), this turnbuckle offers durability and strength suitable for various applications.

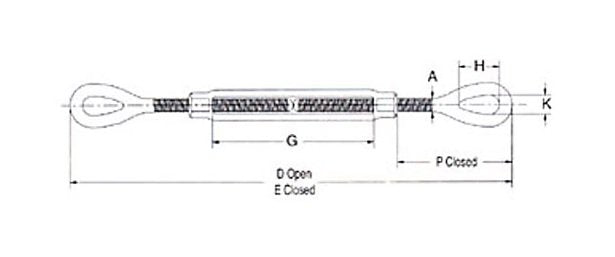

Product Specifications
Specifications A
1
Specifications D Open
39.97
Specifications E Closed
27.72
Specifications G
12
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 12
Specifications Weight
11.5
Specifications Wll Lbs
10000
