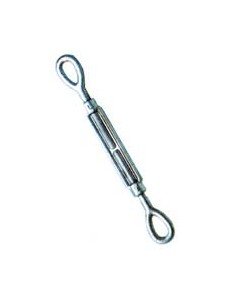

Galvanized Drop Forged Turnbuckle Eye & Eye - 5/8" x 6" - WLL 3500 lbs

Name: Galvanized Drop Forged Turnbuckle Eye & Eye - 5/8" x 6" - WLL 3500 lbs
Brand: Lexco Cable Manufacturing
SKU: WIR-44bdfe
Price: 42.99 USD
Availability: OutOfStock

SKU:WIR-44bdfe

Premium galvanized turnbuckle for secure and reliable wire rope tightening. Meets Federal Spec FF-T-791b standards.

$42.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

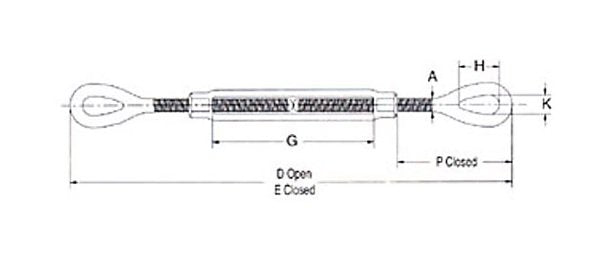

The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye is a premium wire rope hardware designed to meet the stringent requirements of Federal Specification FF-T-791b, Type 1, Form 1 - Class 4. With quenched and tempered end fittings and normalized bodies, this turnbuckle ensures maximum durability and reliability in various applications. It boasts a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, providing a high level of safety and performance. This product is precision-engineered with dimensions that approximate 0.63 A, 21.68 D Open, 15.68 E Closed, 6 G, 1.75 H, 0.88 K, and 3.9 P Closed.

Product Specifications

Specifications A

0.63

Specifications D Open

21.68

Specifications E Closed

15.68

Specifications G

Specifications H

1.75

Specifications K

0.88

Specifications P Closed

3.9

Specifications Thread Dia Take Up In

5/8 x 6

Specifications Weight

2.75

Specifications Wll Lbs

3500
