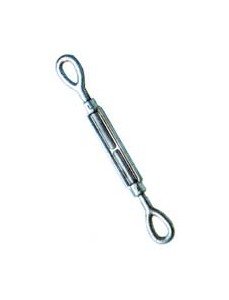

Galvanized Drop Forged Turnbuckle Eye & Eye - Federal Spec FF-T-791b Compliant

Name: Galvanized Drop Forged Turnbuckle Eye & Eye - Federal Spec FF-T-791b Compliant
Brand: Lexco Cable Manufacturing
SKU: WIR-b62e15
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-b62e15

Durable Hot Dip Galvanized Turnbuckle Eye & Eye, meets Federal Spec FF-T-791b for industrial use.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye is built to meet Federal Specification FF-T-791b, Type 1, Form 1 - Class 4. Each turnbuckle is hot dip galvanized, with quenched and tempered end fittings and normalized bodies for superior strength and durability. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures reliable performance under heavy loads. Perfect for industrial applications where safety and quality are paramount.

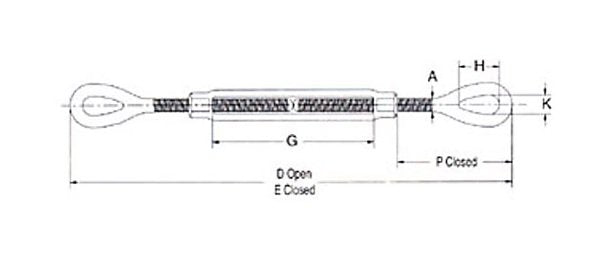

Product Specifications

Specifications A

0.25

Specifications Cross Reference

LCF-66-08 | 144eetb

Specifications D Open

12.25

Specifications E Closed

8.25

Specifications G

Specifications H

0.78

Specifications K

0.34

Specifications P Closed

1.75

Specifications Thread Dia Take Up In

1/4 x 4

Specifications Weight

0.3

Specifications Wll Lbs

500
