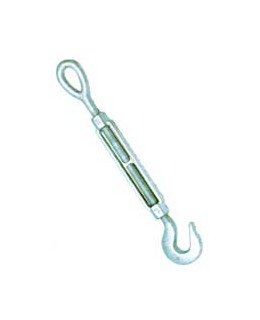

Galvanized Drop Forged Turnbuckle Hook & Eye
Galvanized Drop Forged Turnbuckle Hook & Eye
SKU:WIR-b079c8
High-quality Galvanized Turnbuckle Hook & Eye compliant with federal standards. Proof load 2.5x WLL, ultimate load 5x WLL. Dimensions: 1x12 in., WLL: 5000 lbs.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Hook & Eye
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Hook & Eye
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckle Hook & Eye is designed to meet stringent government and institutional procurement standards. Conforming to Federal Specification FF-T-791b, Type 1, Form 1 - Class 6, this turnbuckle is hot dip galvanized for enhanced durability. Its end fittings are quenched and tempered, while the bodies are normalized for reliable performance. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures exceptional safety and strength. It features a thread diameter of 1 inch, a take up of 12 inches, and a working load limit of 5,000 lbs.

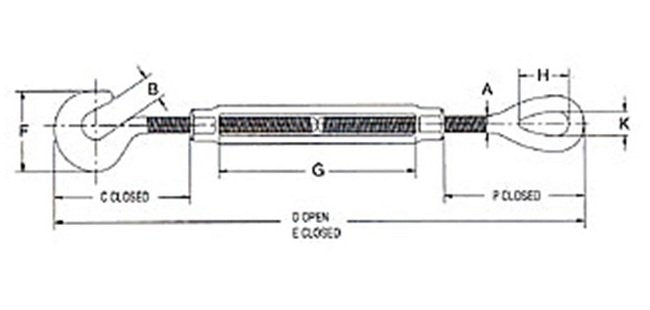

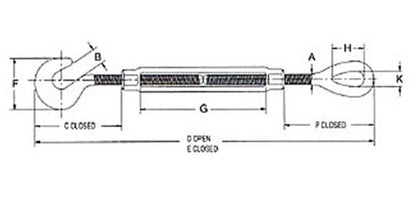

Product Specifications
Specifications A
1
Specifications B
1.25
Specifications C Closed
5.84
Specifications D Open
38.69
Specifications E Closed
26.69
Specifications F
4.25
Specifications G
12
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 12
Specifications Weight
11.93
Specifications Wll Lbs
5000
