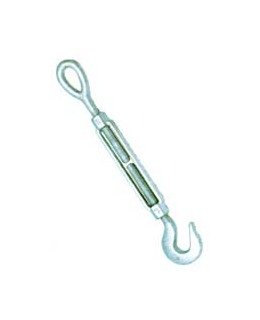

Galvanized Drop Forged Turnbuckle Hook & Eye - 3/4 x 12 in.
Galvanized Drop Forged Turnbuckle Hook & Eye - 3/4 x 12 in.
SKU:WIR-0f9c62
Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye - Superior strength & durability, meets Federal Spec FF-T-791b
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Hook & Eye - 3/4 x 12 in.
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Hook & Eye - 3/4 x 12 in.
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled strength and durability with our Hot Dip Galvanized Drop Forged Turnbuckles Hook & Eye. This product meets Federal Specification FF-T-791b, Type 1, Form 1 - Class 6, ensuring top-tier quality. The end fittings are quenched and tempered, while the bodies are normalized for superior performance. With a proof load capacity of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, reliability is guaranteed. Perfect for heavy-duty applications, the dimensions of this turnbuckle are meticulously designed for precise functionality.

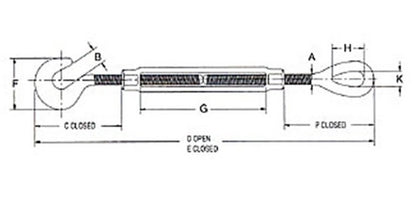

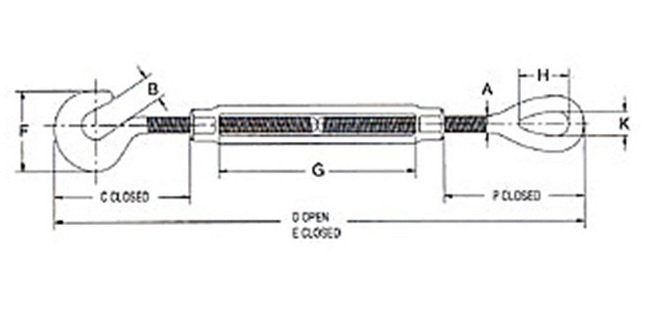

Product Specifications
Specifications A
0.75
Specifications B
0.98
Specifications C Closed
4.52
Specifications D Open
35.28
Specifications E Closed
23.28
Specifications F
3.33
Specifications G
12
Specifications H
2.09
Specifications K
1
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 12
Specifications Weight
5.43
Specifications Wll Lbs
3000
