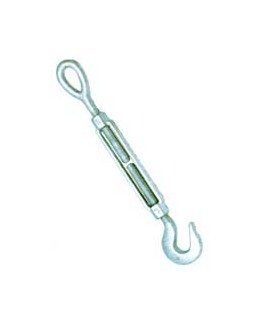

Galvanized Drop Forged Turnbuckle Hook & Eye, 5/16 x 4-1/2
Galvanized Drop Forged Turnbuckle Hook & Eye, 5/16 x 4-1/2
SKU:WIR-ca6865
High-strength Galvanized Turnbuckle for secure wire rope connections, compliant with Federal Spec FF-T-791b.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Hook & Eye, 5/16 x 4-1/2
$24.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Hook & Eye, 5/16 x 4-1/2
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior strength and durability with our Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye. Conforming to Federal Specification FF-T-791b, Type 1, Form 1 - Class 6, this turnbuckle features quenched and tempered end fittings and normalized bodies. With a proof load capacity 2.5 times the working load limit and ultimate load 5 times the limit, rest assured of reliable performance. Its precise dimensions ensure a secure fit for your wire rope applications.

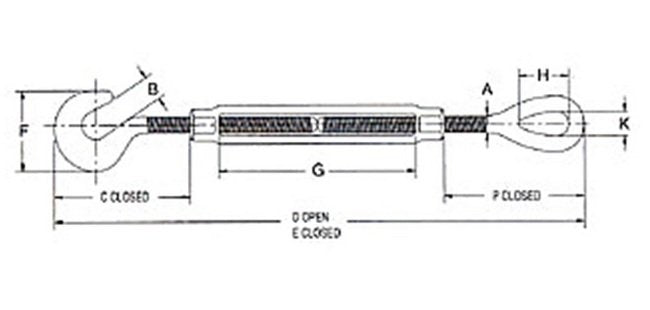

Product Specifications
Specifications A
0.31
Specifications B
0.5
Specifications C Closed
1.94
Specifications D Open
13.81
Specifications E Closed
9.31
Specifications F
1.5
Specifications G
4.5
Specifications H
0.94
Specifications K
0.44
Specifications P Closed
2.09
Specifications Thread Dia Take Up In
5/16 x 4-1/2
Specifications Weight
0.47
Specifications Wll Lbs
700
