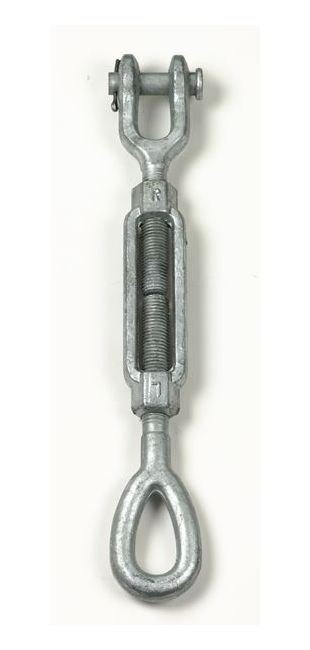

Galvanized Drop Forged Turnbuckle Jaw & Eye
Galvanized Drop Forged Turnbuckle Jaw & Eye
SKU:WIR-97709c
High-quality Galvanized Drop Forged Turnbuckle Jaw & Eye meeting Federal Specification FF-T-791b standards. With hot dip galvanization and superior strength, it ensures reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Jaw & Eye
$59.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Jaw & Eye
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckle Jaw & Eye is designed to meet the rigorous standards of Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With hot dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, this turnbuckle ensures maximum strength and longevity. Featuring a 2.5 times working load limit proof load and dimensions approximating 1 x 6 inches, this turnbuckle is a reliable choice for a variety of applications.

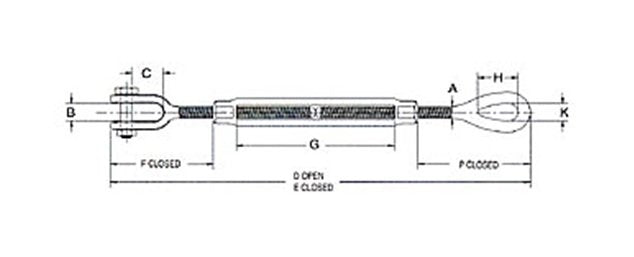

Product Specifications
Specifications A
1
Specifications B
1.19
Specifications C Closed
2.06
Specifications D Open
26.89
Specifications E Closed
20.89
Specifications F
5.53
Specifications G
6
Specifications H
3
Specifications K
1.44
Specifications Pin Diameter In
7/8
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 6
Specifications Weight
8.92
Specifications Wll Lbs
10,000
