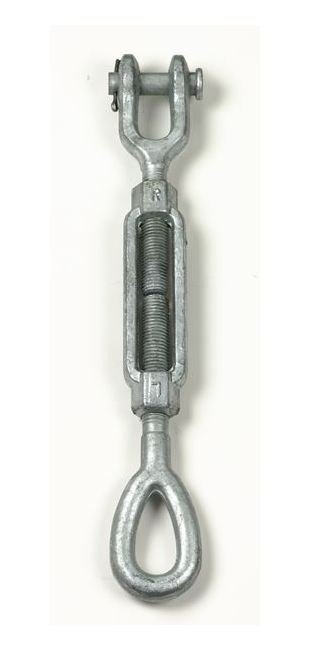

Galvanized Drop Forged Turnbuckle Jaw & Eye

Name: Galvanized Drop Forged Turnbuckle Jaw & Eye
Brand: Lexco Cable Manufacturing
SKU: WIR-9c37ce
Price: 59.99 USD
Availability: OutOfStock

SKU:WIR-9c37ce

High-quality Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye meeting Federal Spec FF-T-791b requirements.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye is meticulously crafted to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards. With hot dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, this turnbuckle ensures superior performance. It boasts a 2.5 times working load limit proof load and 5 times ultimate load, providing reliability and safety in various applications. Precision-engineered with dimensions approximating Thread Dia & Take Up of 7/8 x 18 inches, this turnbuckle is a premium choice for wire rope hardware needs.

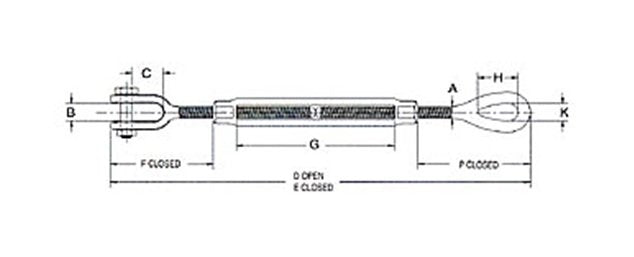

Product Specifications

Specifications A

0.88

Specifications B

1.13

Specifications C Closed

1.75

Specifications D Open

48.57

Specifications E Closed

30.57

Specifications F

4.85

Specifications G

Specifications H

2.38

Specifications K

1.25

Specifications Pin Diameter In

3/4

Specifications P Closed

5.1

Specifications Thread Dia Take Up In

7/8 x 18

Specifications Weight

9.75

Specifications Wll Lbs

7,200
