Galvanized Drop Forged Turnbuckle - Jaw & Eye, 1-1/4 x 24

Name: Galvanized Drop Forged Turnbuckle - Jaw & Eye, 1-1/4 x 24
Brand: Lexco Cable Manufacturing
SKU: WIR-faae76
Price: 149.99 USD
Availability: OutOfStock

SKU:WIR-faae76

Galvanized Drop Forged Turnbuckle, Federal Spec FF-T-791b, 1-1/4 x 24, WLL 15,200 lbs

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

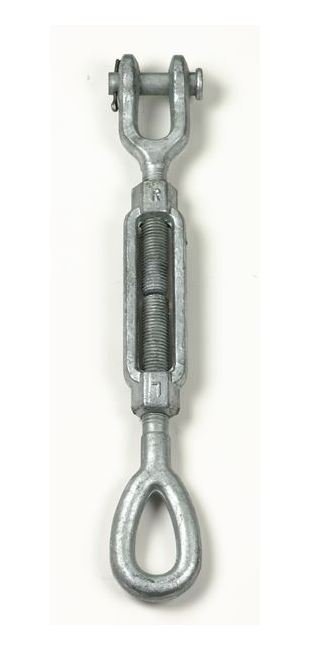

The Galvanized Drop Forged Turnbuckle features a hot-dip galvanized finish for enhanced durability in various environments. Meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards, this turnbuckle is designed with quenched and tempered end fittings and normalized bodies. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures reliable performance. The dimensions, approximations, include a Thread Dia & Take Up of 1-1/4 x 24 inches, a Pin Diameter of 1-1/8 inches, and a Weight of 28.5 lbs.

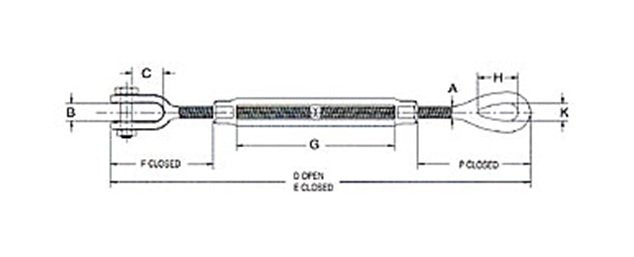

Product Specifications

Specifications A

1.25

Specifications B

1.75

Specifications C Closed

2.81

Specifications D Open

66.05

Specifications E Closed

42.05

Specifications F

7.21

Specifications G

Specifications H

3.56

Specifications K

1.81

Specifications Pin Diameter In

1-1/8

Specifications P Closed

7.72

Specifications Thread Dia Take Up In

1-1/4 x 24

Specifications Weight

28.5

Specifications Wll Lbs

15,200
