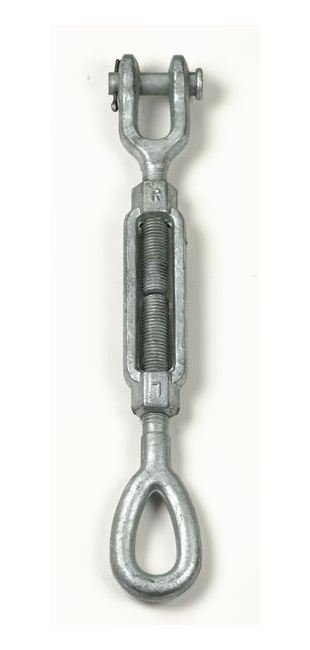

Galvanized Drop Forged Turnbuckle Jaw & Eye
Galvanized Drop Forged Turnbuckle Jaw & Eye
SKU:WIR-02fcb3
High-quality Galvanized Drop Forged Turnbuckle Jaw & Eye designed for durability and strength, meeting stringent federal standards. Ideal for wire rope hardware applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Jaw & Eye
$89.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Jaw & Eye
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckle Jaw & Eye is meticulously crafted to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards, ensuring superior quality and durability. Featuring a hot dip galvanized finish, quenched and tempered end fittings, and normalized bodies, this turnbuckle guarantees reliable performance in demanding applications. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this product offers unmatched strength and safety. Ideal for wire rope hardware applications, it boasts precise dimensions and a threaded design for easy installation and adjustment.

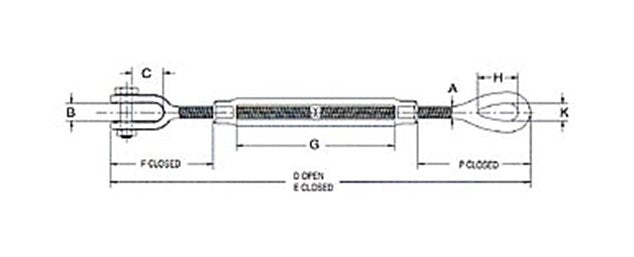

Product Specifications
Specifications A
0.75
Specifications B
0.94
Specifications C Closed
1.5
Specifications D Open
47.11
Specifications E Closed
29.11
Specifications F
4.18
Specifications G
18
Specifications H
2.09
Specifications K
1
Specifications Pin Diameter In
5/8
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 18
Specifications Weight
7
Specifications Wll Lbs
5,200
