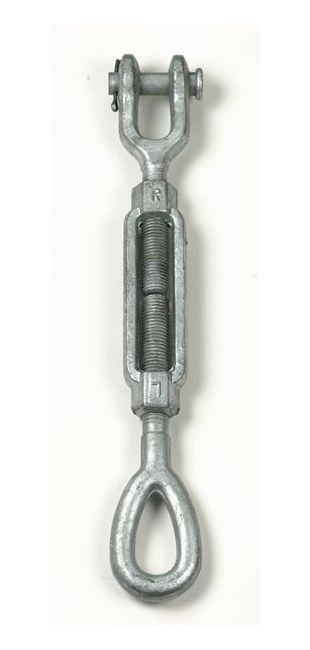

Galvanized Drop Forged Turnbuckle Jaw & Eye, 7/8

Name: Galvanized Drop Forged Turnbuckle Jaw & Eye, 7/8
Brand: Lexco Cable Manufacturing
SKU: WIR-e3f764
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-e3f764

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Conforms To Federal Specification FF-T-791b, Type 1, Form 1 - Class 8Hot dip galvanizedEnd fittings are quenched and tempered bodies are normalizedProof load is 2.5 times working load limit. Ultimate load is 5 times working load limitDimensions, approx

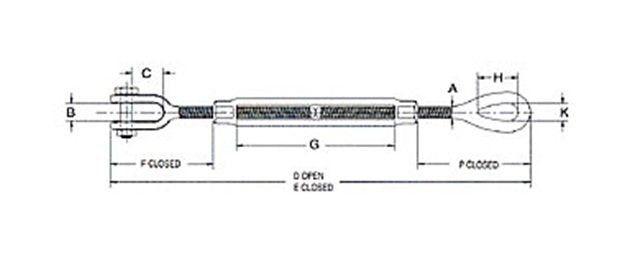

Product Specifications

Specifications A

0.88

Specifications B

1.13

Specifications C Closed

1.75

Specifications D Open

36.57

Specifications E Closed

24.57

Specifications F

4.85

Specifications G

Specifications H

2.38

Specifications K

1.25

Specifications Pin Diameter In

3/4

Specifications P Closed

5.1

Specifications Thread Dia Take Up In

7/8 x 12

Specifications Weight

Specifications Wll Lbs

7,200
