Galvanized Drop Forged Turnbuckle Jaw & Eye (Hot Dip, FF-T-791b)

Name: Galvanized Drop Forged Turnbuckle Jaw & Eye (Hot Dip, FF-T-791b)
Brand: Lexco Cable Manufacturing
SKU: WIR-dd319f
Price: 69.99 USD
Availability: OutOfStock

SKU:WIR-dd319f

Heavy-duty Galvanized Turnbuckle meeting FF-T-791b standards, with 5,200 lbs WLL

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

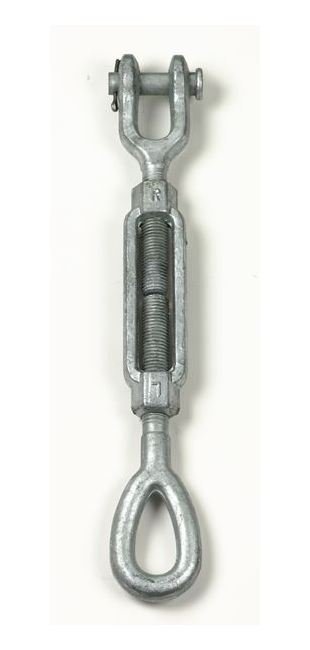

The Galvanized Drop Forged Turnbuckle Jaw & Eye is designed to meet the rigorous standards of Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With hot dip galvanization for enhanced durability and corrosion resistance, this turnbuckle features quenched and tempered end fittings and normalized bodies. It boasts a proof load of 2.5 times the working load limit for maximum safety. Ideal for heavy-duty applications, this turnbuckle offers a working load limit of 5,200 lbs and an ultimate load capacity of 5 times the working load limit.

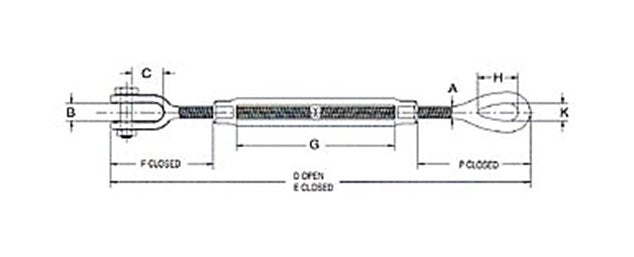

Product Specifications

Specifications A

0.75

Specifications B

0.94

Specifications C Closed

1.5

Specifications D Open

35.11

Specifications E Closed

23.11

Specifications F

4.18

Specifications G

Specifications H

2.09

Specifications K

Specifications Pin Diameter In

5/8

Specifications P Closed

4.69

Specifications Thread Dia Take Up In

3/4 x 12

Specifications Weight

5.36

Specifications Wll Lbs

5,200
