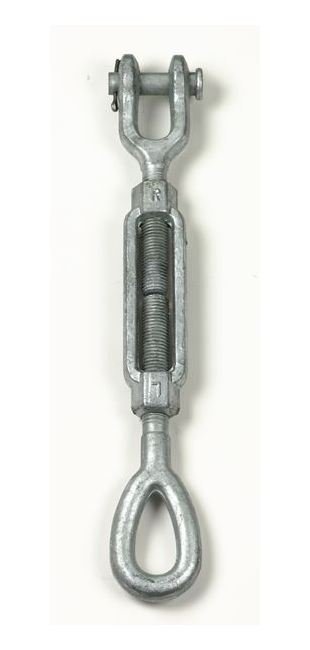

Galvanized Drop Forged Turnbuckle Jaw & Eye Set
Galvanized Drop Forged Turnbuckle Jaw & Eye Set
SKU:WIR-5497da
Enhanced durability & safety with Galvanized Drop Forged Turnbuckle Jaw & Eye Set. Meets FF-T-791b specs. Ideal for wire rope applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckle Jaw & Eye Set
$29.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckle Jaw & Eye Set
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckle Jaw & Eye Set is designed to meet the stringent requirements of Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With hot-dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, this turnbuckle ensures reliable performance in demanding applications. Offering a proof load of 2.5 times the working load limit and an ultimate load of 5 times the limit, this turnbuckle provides high safety margins. With dimensions approximating 1/4 x 4 inches and a weight of 0.32 lbs, this set is a dependable choice for wire rope hardware needs.

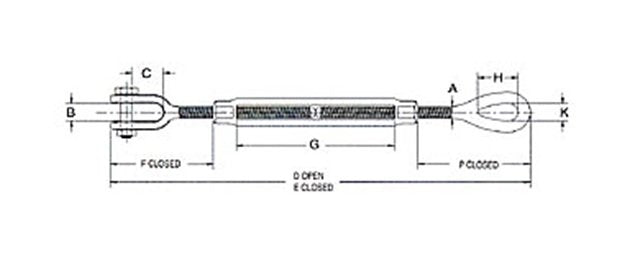

Product Specifications
Specifications A
0.25
Specifications B
0.41
Specifications C Closed
0.62
Specifications D Open
12.07
Specifications E Closed
8.07
Specifications F
1.58
Specifications G
4
Specifications H
0.78
Specifications K
0.34
Specifications Pin Diameter In
1/4
Specifications P Closed
1.75
Specifications Thread Dia Take Up In
1/4 x 4
Specifications Weight
0.32
Specifications Wll Lbs
500
