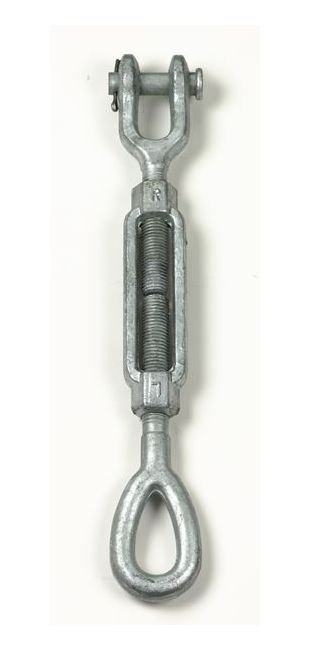

Galvanized Drop Forged Turnbuckle Jaw & Eye Set

Name: Galvanized Drop Forged Turnbuckle Jaw & Eye Set
Brand: Lexco Cable Manufacturing
SKU: WIR-eb39c8
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-eb39c8

Meet institutional standards with our Galvanized Drop Forged Turnbuckle Jaw & Eye for ultimate durability and performance.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Drop Forged Turnbuckle Jaw & Eye Set is built to meet the highest standards, including Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With hot dip galvanization, quenched and tempered end fittings, and normalized bodies, this turnbuckle ensures superior durability and performance. It boasts a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, providing unmatched reliability. With precise dimensions and a sturdy construction, this turnbuckle is ideal for heavy-duty applications.

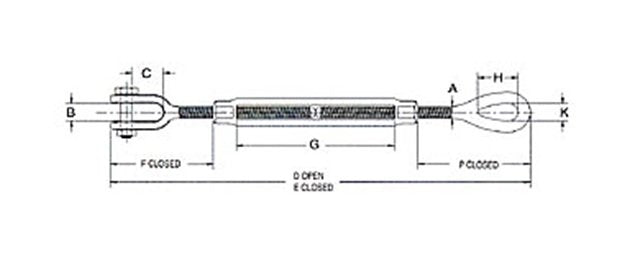

Product Specifications

Specifications A

0.5

Specifications B

0.63

Specifications C Closed

1.06

Specifications D Open

31.48

Specifications E Closed

19.48

Specifications F

2.75

Specifications G

Specifications H

1.44

Specifications K

0.72

Specifications Pin Diameter In

7/16

Specifications P Closed

3.23

Specifications Thread Dia Take Up In

1/2 x 12

Specifications Weight

2.06

Specifications Wll Lbs

2,200

Galvanized Drop Forged Turnbuckle Jaw & Eye Set
