Galvanized Drop Forged Turnbuckles Body Only - 5/8 x 9
Galvanized Drop Forged Turnbuckles Body Only - 5/8 x 9
SKU:WIR-cd6614
High-strength Galvanized Turnbuckle Body - Federal Spec FF-T-791b Compliant, 3500lbs WLL
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Body Only - 5/8 x 9
$34.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Body Only - 5/8 x 9
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

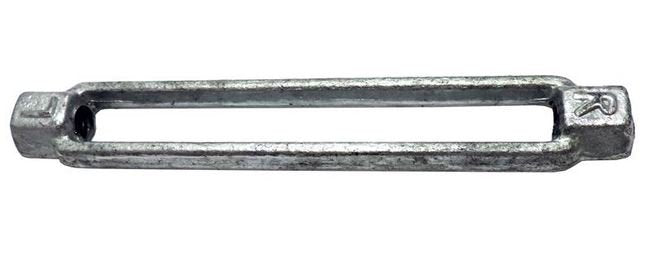

The Hot Dip Galvanized Drop Forged Turnbuckles Body Only in 5/8 x 9 thread size is built to meet Federal Specification FF-T-791b, Type 1, Form 1 - Class 2 standards. Designed for heavy-duty applications, this turnbuckle body offers a Working Load Limit (WLL) of 3500 lbs, ensuring reliable performance. With a hot dip galvanized finish for corrosion resistance and normalized dimensions, this turnbuckle body provides durability and strength for wire rope tightening and tensioning.

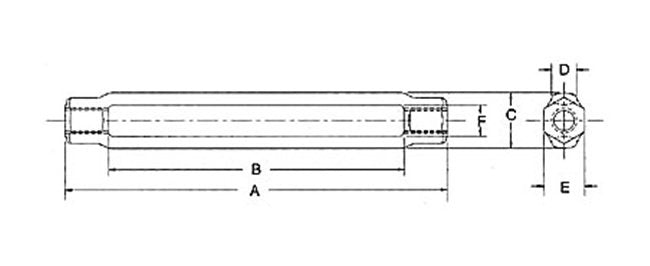

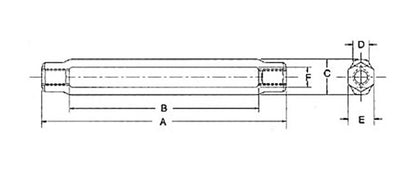

Product Specifications
Specifications A
10.88
Specifications B
9
Specifications C
1.38
Specifications D
0.62
Specifications E
1
Specifications F
0.75
Specifications Thread Dia Take Up In
5/8 x 9
Specifications Weight
1.18
Specifications Wll Lbs
3500
