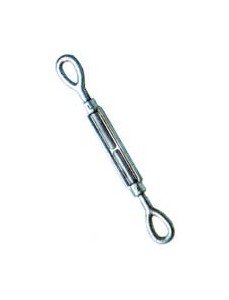

Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/2 x 24
Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/2 x 24
SKU:WIR-adca06
High-quality Hot Dip Galvanized Turnbuckles with exceptional strength and safety features, meeting Federal Specification FF-T-791b, Type 1 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/2 x 24
$89.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/2 x 24
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards, ensuring top-tier quality and durability. With quenched and tempered end fittings and normalized bodies, these turnbuckles offer exceptional strength. Featuring a 2.5 times working load limit proof load and 5 times working load limit ultimate load, they provide superior safety margin. Ideal for heavy-duty applications, these turnbuckles boast precise dimensions and reliable performance.

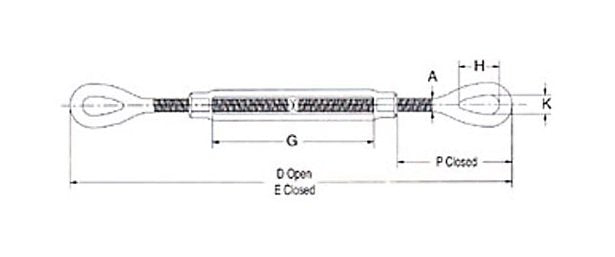

Product Specifications
Specifications A
1.5
Specifications D Open
69
Specifications E Closed
45.34
Specifications G
24
Specifications H
4.06
Specifications K
2.12
Specifications P Closed
8.62
Specifications Thread Dia Take Up In
1-1/2 x 24
Specifications Weight
37.5
Specifications Wll Lbs
21400
