Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/4 x 24

Name: Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/4 x 24
Brand: Lexco Cable Manufacturing
SKU: WIR-1d7ff2
Price: 289.99 USD
Availability: OutOfStock

SKU:WIR-1d7ff2

Premium Galvanized Drop Forged Turnbuckles Eye & Eye - Meets Federal Spec FF-T-791b, Type 1

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Drop Forged Turnbuckles Eye & Eye are forged to meet the rigorous Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. Hot dip galvanization ensures exceptional durability while the quenched and tempered end fittings, normalized bodies, and 2.5x proof load factor guarantee reliable performance in demanding environments. With a working load limit of 15200 lbs and 5x ultimate load capacity, these turnbuckles offer robust strength and peace of mind. Precision-engineered dimensions of 66.56" (D Open), 42.56" (E Closed), and other details provide precise fit and functionality.

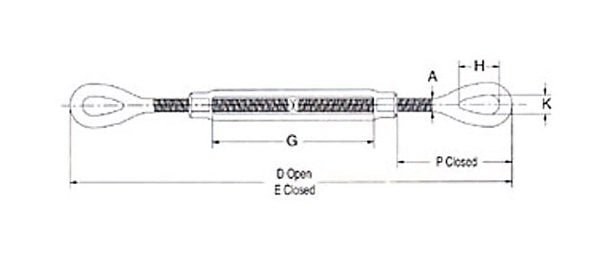

Product Specifications

Specifications A

1.25

Specifications D Open

66.56

Specifications E Closed

42.56

Specifications G

Specifications H

3.56

Specifications K

1.81

Specifications P Closed

7.72

Specifications Thread Dia Take Up In

1-1/4 x 24

Specifications Weight

Specifications Wll Lbs

15200

Galvanized Drop Forged Turnbuckles Eye & Eye - 1-1/4 x 24
