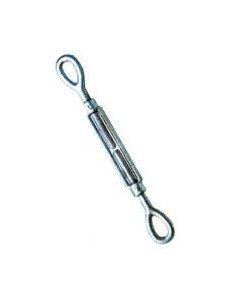

Galvanized Drop Forged Turnbuckles Eye & Eye - 3/4 x 12
Galvanized Drop Forged Turnbuckles Eye & Eye - 3/4 x 12
SKU:WIR-feee3c
High-strength Galvanized Drop Forged Turnbuckles Eye & Eye - Conforms to Federal Specifications. Proof load: 2.5x WLL.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Eye & Eye - 3/4 x 12
$49.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Eye & Eye - 3/4 x 12
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

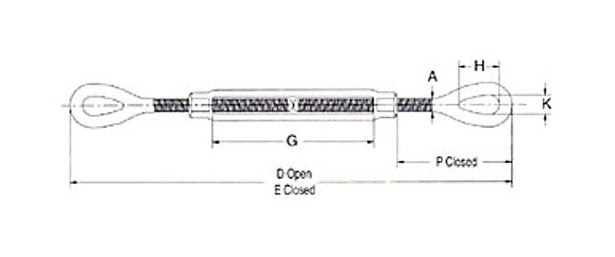

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye, featuring end fittings that are quenched and tempered with normalized bodies, conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 4. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle provides exceptional strength and durability. Dimensions approximately A: 0.75, D Open: 35.62, E Closed: 23.62, G: 12, H: 2.09, K: 1, P Closed: 4.69.
Product Specifications
Specifications A
0.75
Specifications D Open
35.62
Specifications E Closed
23.62
Specifications G
12
Specifications H
2.09
Specifications K
1
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 12
Specifications Weight
5.43
Specifications Wll Lbs
5200
