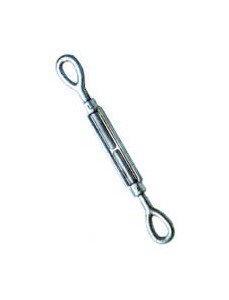

Galvanized Drop Forged Turnbuckles - Eye & Eye, 3/4 x 6 in.
Galvanized Drop Forged Turnbuckles - Eye & Eye, 3/4 x 6 in.
SKU:WIR-d4c066
High-strength, galvanized turnbuckles meeting FF-T-791b, Type 1, Form 1 - Class 4 standards. Ideal for heavy-duty applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles - Eye & Eye, 3/4 x 6 in.
$59.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles - Eye & Eye, 3/4 x 6 in.
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are built to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. With quenched and tempered end fittings and normalized bodies, these turnbuckles offer exceptional strength and durability. Featuring a 2.5 times working load limit proof load and 5 times working load limit ultimate load, these turnbuckles are reliable for heavy-duty applications. The dimensions include Thread Dia & Take Up of 3/4 x 6 inches, a Working Load Limit of 5200 lbs, and a weight of 3.89 lbs.

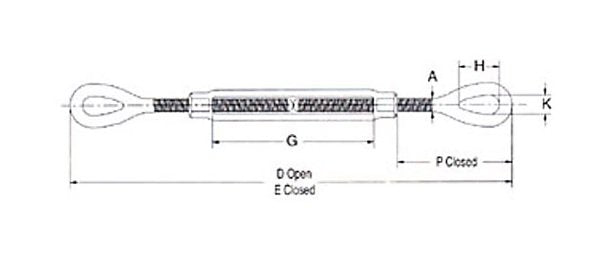

Product Specifications
Specifications A
0.75
Specifications D Open
23.62
Specifications E Closed
17.62
Specifications G
6
Specifications H
2.09
Specifications K
1
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 6
Specifications Weight
3.89
Specifications Wll Lbs
5200
