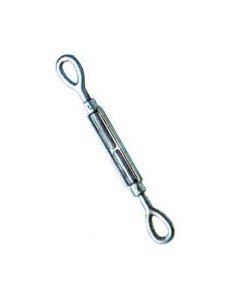

Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant

Name: Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant
Brand: Lexco Cable Manufacturing
SKU: WIR-cf6b8a
Price: 249.99 USD
Availability: OutOfStock

SKU:WIR-cf6b8a

Heavy-duty galvanized turnbuckles, FF-T-791b compliant, superior strength & durability for wire rope hardware.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are engineered to meet the stringent requirements of Federal Specification FF-T-791b, Type 1, Form 1 - Class 4. These turnbuckles feature hot dip galvanization for enhanced durability, while the end fittings are quenched and tempered with normalized bodies for reliable performance. With a 2.5 times proof load capacity exceeding the working load limit and 5 times ultimate load, these turnbuckles offer exceptional safety and strength. Ideal for diverse applications, the dimensions (approx) ensure a precise fit for wire rope hardware needs.

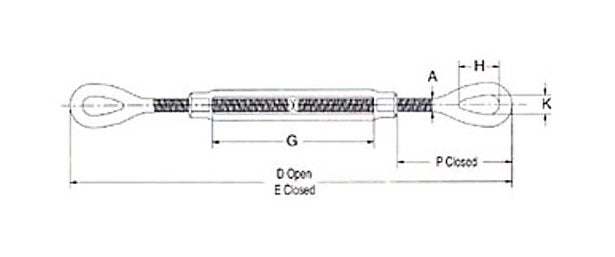

Product Specifications

Specifications A

1.5

Specifications D Open

Specifications E Closed

Specifications G

Specifications H

4.06

Specifications K

2.12

Specifications P Closed

8.62

Specifications Thread Dia Take Up In

1-1/2 x 18

Specifications Weight

Specifications Wll Lbs

21400
