Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant
Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant
SKU:WIR-ebd87e
High-performance Galvanized Drop Forged Turnbuckle Eye & Eye, FF-T-791b compliant, ideal for heavy-duty use.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant
$54.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Eye & Eye - Federal Spec FF-T-791b Compliant
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

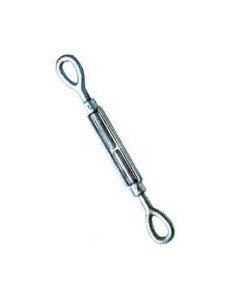

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye is built to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. With quenched and tempered end fittings and normalized bodies, this turnbuckle ensures durability and reliability. It has a 2.5 times working load limit proof load and a 5 times working load limit ultimate load, making it ideal for heavy-duty applications. The dimensions, approximately Thread Dia & Take Up (in.) 5/8 x 9, provide superior strength and performance.

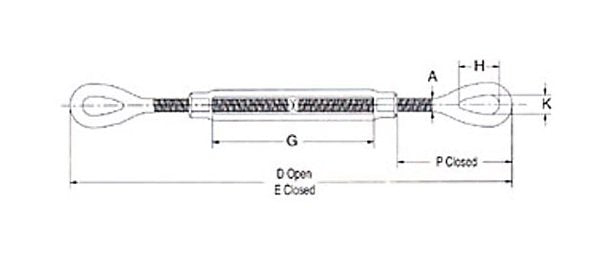

Product Specifications
Specifications A
0.63
Specifications D Open
27.68
Specifications E Closed
18.68
Specifications G
9
Specifications H
1.75
Specifications K
0.88
Specifications P Closed
3.9
Specifications Thread Dia Take Up In
5/8 x 9
Specifications Weight
3.13
Specifications Wll Lbs
3500
