Galvanized Drop Forged Turnbuckles Eye & Eye - FF-T-791b Compliant

Name: Galvanized Drop Forged Turnbuckles Eye & Eye - FF-T-791b Compliant
Brand: Lexco Cable Manufacturing
SKU: WIR-e90f8c
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-e90f8c

Galvanized Drop Forged Turnbuckles Eye & Eye meeting FF-T-791b standards for safety and durability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are designed to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 requirements. These turnbuckles feature quenched and tempered end fittings, normalized bodies, and a 2.5 times proof load over the working load limit for enhanced safety. With dimensions approximating Thread Dia & Take Up of 5/8 x 12 inches, WLL of 3500 lbs, and a weight of 3.5 lbs, these turnbuckles are reliable and durable for various applications.

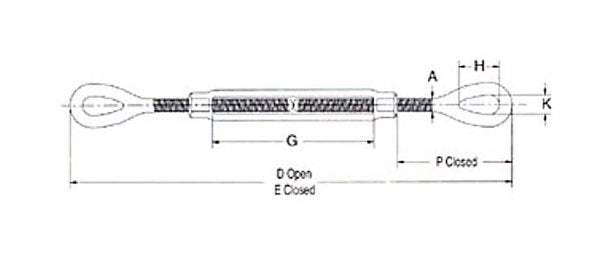

Product Specifications

Specifications A

0.63

Specifications D Open

33.68

Specifications E Closed

21.68

Specifications G

Specifications H

1.75

Specifications K

0.88

Specifications P Closed

3.9

Specifications Thread Dia Take Up In

5/8 x 12

Specifications Weight

3.5

Specifications Wll Lbs

3500

Galvanized Drop Forged Turnbuckles Eye & Eye - FF-T-791b Compliant
