Galvanized Drop Forged Turnbuckles Hook & Eye
Galvanized Drop Forged Turnbuckles Hook & Eye
SKU:WIR-d1e062
Heavy-duty Galvanized Turnbuckle Meeting Federal Spec FF-T-791b. Ideal for industrial and government use. Proof load: 2.5x WLL, Ultimate load: 5x WLL.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Eye
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Eye
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

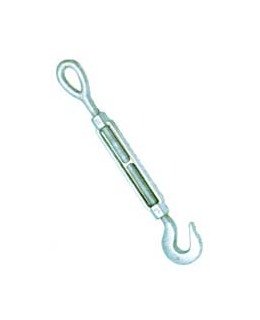

The Galvanized Drop Forged Turnbuckles Hook & Eye is built to the rigorous standards of Federal Specification FF-T-791b, Type 1, Form 1 - Class 6, making it ideal for industrial and government procurement needs. This turnbuckle features hot dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies. With a 2.5 times working load limit proof load and 5 times working load limit ultimate load, this turnbuckle ensures reliable performance under heavy loads. The dimensions, approximately 1 x 18 inches, make it suitable for a variety of wire rope hardware applications.

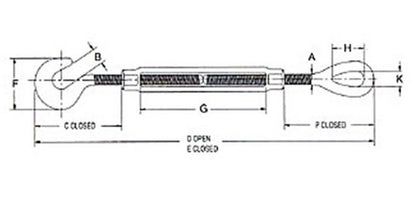

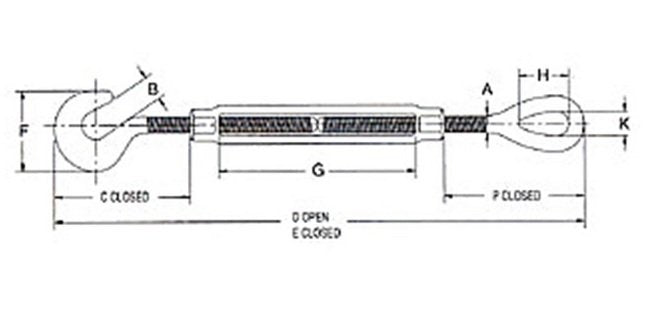

Product Specifications
Specifications A
1
Specifications B
1.25
Specifications C Closed
5.84
Specifications D Open
50.69
Specifications E Closed
23.69
Specifications F
4.25
Specifications G
18
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 18
Specifications Weight
14
Specifications Wll Lbs
5000
