Galvanized Drop Forged Turnbuckles Hook & Eye - 1/2 x 12
Galvanized Drop Forged Turnbuckles Hook & Eye - 1/2 x 12
SKU:WIR-9b37e7
High-quality Hot Dip Galvanized Drop Forged Turnbuckles Hook & Eye - 1/2 x 12, compliant with Federal Spec FF-T-791b Type 1, Form 1, Class 6.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Eye - 1/2 x 12
$49.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Eye - 1/2 x 12
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

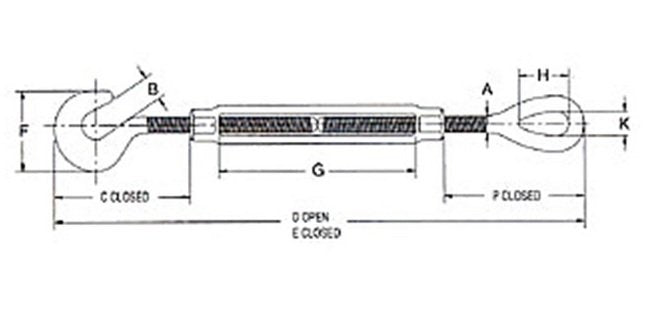

The Hot Dip Galvanized Drop Forged Turnbuckles Hook & Eye threaded with 1/2 x 12 dimensions are designed to meet the demanding requirements of federal specifications FF-T-791b, Type 1, Form 1 - Class 6. With quenched and tempered end fittings and normalized bodies, this turnbuckle offers exceptional durability and strength. It has a proof load capacity of 2.5 times the working load limit, ensuring reliable performance in various applications. The ultimate load capacity is 5 times the working load limit, providing added safety and peace of mind. Dimensions are approximately A: 0.5, B: 0.66, C Closed: 2.94, D Open: 31.38, E Closed: 19.38, F: 2.28, G: 12, H: 1.44, K: 0.72, P Closed: 3.23.
Product Specifications
Specifications A
0.5
Specifications B
0.66
Specifications C Closed
2.94
Specifications D Open
31.38
Specifications E Closed
19.38
Specifications F
2.28
Specifications G
12
Specifications H
1.44
Specifications K
0.72
Specifications P Closed
3.23
Specifications Thread Dia Take Up In
1/2 x 12
Specifications Weight
2.08
Specifications Wll Lbs
1500
