Reliable Galvanized Turnbuckles Meeting Federal Standards for Heavy-Duty Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Eye
$29.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Eye
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckles Hook & Eye is engineered to meet rigorous standards, including Federal Specification FF-T-791b, Type 1, Form 1 - Class 6. Hot dip galvanization ensures exceptional durability, while quenched and tempered end fittings, normalized bodies, and a 2.5 times proof load factor guarantee reliability under extreme conditions. With precise dimensions (1/4 x 4 inches) and a working load limit of 500 lbs, this turnbuckle offers exceptional performance and safety.

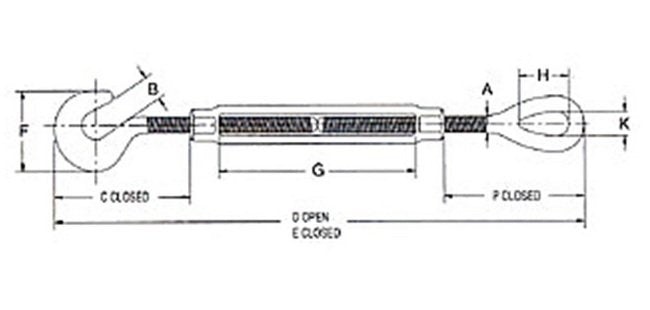

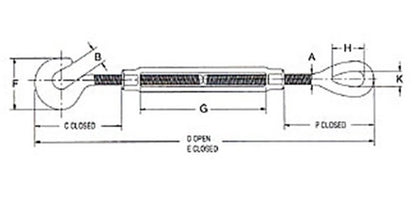

Product Specifications
Specifications A
0.25
Specifications B
0.45
Specifications C Closed
1.59
Specifications D Open
11.94
Specifications E Closed
7.94
Specifications F
1.27
Specifications G
4
Specifications H
0.78
Specifications K
0.34
Specifications P Closed
1.75
Specifications Thread Dia Take Up In
1/4 x 4
Specifications Weight
0.3
Specifications Wll Lbs
500
