Galvanized Drop Forged Turnbuckles Hook & Eye - Federal Spec FF-T-791b, Type 1, Form 1 - Class 6

Name: Galvanized Drop Forged Turnbuckles Hook & Eye - Federal Spec FF-T-791b, Type 1, Form 1 - Class 6
Brand: Lexco Cable Manufacturing
SKU: WIR-030899
Price: 64.99 USD
Availability: OutOfStock

SKU:WIR-030899

Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b Compliant, High Load Capacity

$64.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

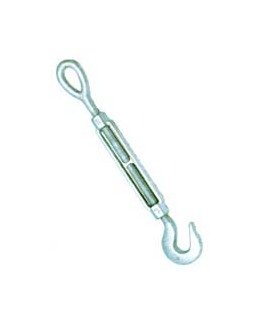

The Hot Dip Galvanized Drop Forged Turnbuckles Hook & Eye is designed to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 6 standards, ensuring exceptional durability and reliability. With hot-dip galvanization for corrosion resistance, quenched and tempered end fittings, and normalized bodies, this turnbuckle offers superior performance. It features a 2.5 times working load limit proof load and 5 times working load limit ultimate load. The dimensions and specifications, including a Thread Dia & Take Up of 7/8 x 12 inches, make it ideal for heavy-duty applications.

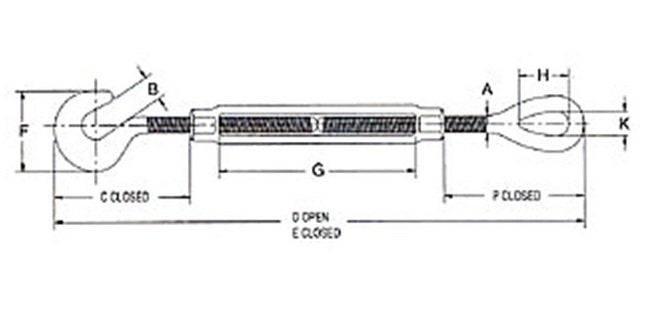

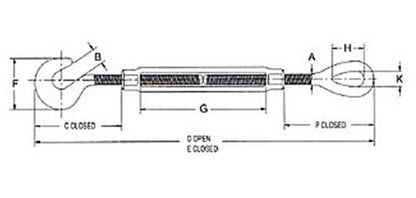

Product Specifications

Specifications A

0.88

Specifications B

1.13

Specifications C Closed

5.19

Specifications D Open

Specifications E Closed

Specifications F

3.78

Specifications G

Specifications H

2.38

Specifications K

1.25

Specifications P Closed

5.1

Specifications Thread Dia Take Up In

7/8 x 12

Specifications Weight

8.1

Specifications Wll Lbs

4000
