Galvanized Drop Forged Turnbuckles Hook & Hook 1" x 24" - 5000 lbs WLL
Galvanized Drop Forged Turnbuckles Hook & Hook 1" x 24" - 5000 lbs WLL
SKU:WIR-41e24e
Heavy-duty Hot Dip Galvanized Turnbuckle, 1" x 24", 5000 lbs WLL, FF-T-791b Compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Hook 1" x 24" - 5000 lbs WLL
$39.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Hook 1" x 24" - 5000 lbs WLL
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

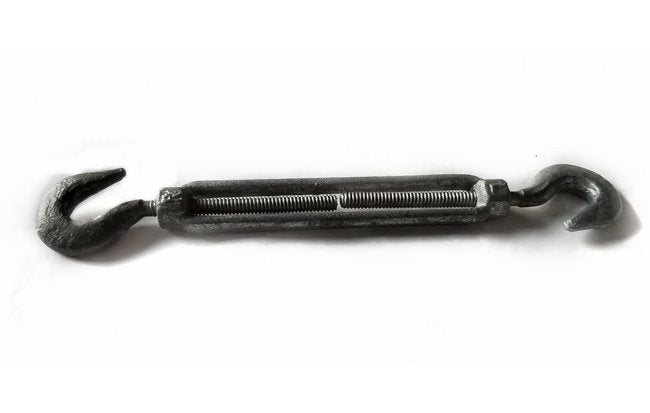

The Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook 1" x 24" combines durability with reliability for heavy-duty applications. This turnbuckle conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 5, ensuring quality and performance. With a proof load of 2.5 times the working load limit and an ultimate load capacity of 5 times the working load limit, it guarantees safety and strength. The end fittings are quenched and tempered, while the bodies are normalized, providing added resilience. Ideal for wire rope applications requiring sturdy construction.

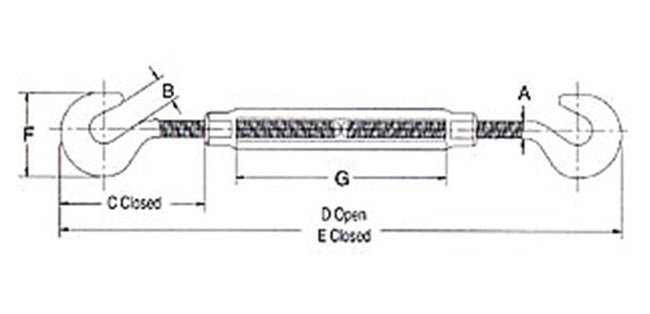

Product Specifications
Specifications A
1
Specifications B
1.25
Specifications C Closed
5.84
Specifications D Open
62.69
Specifications E Closed
38.69
Specifications F
4.25
Specifications G
24
Specifications Thread Dia Take Up In
1 x 24
Specifications Weight
17.25
Specifications Wll Lbs
5000
