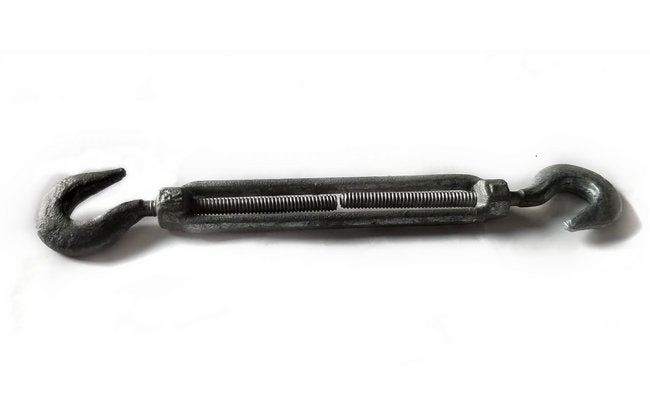

Galvanized Drop Forged Turnbuckles Hook & Hook - 1" x 6" Thread Dia, 5000lbs WLL
Galvanized Drop Forged Turnbuckles Hook & Hook - 1" x 6" Thread Dia, 5000lbs WLL
SKU:WIR-9faeb7
Meet Federal Spec FF-T-791b Type 1 Class 5 with our Galvanized Drop Forged Turnbuckles, 5000lbs WLL
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Hook - 1" x 6" Thread Dia, 5000lbs WLL
$39.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Hook - 1" x 6" Thread Dia, 5000lbs WLL
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook are built to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 5 standards. With quenched and tempered end fittings, normalized bodies, and a 2.5x proof load, these turnbuckles ensure reliability and durability. The ultimate load capacity of 5 times the working load limit provides added safety. Perfect for heavy-duty applications, these turnbuckles boast precise dimensions and high-quality galvanized coating for corrosion resistance.

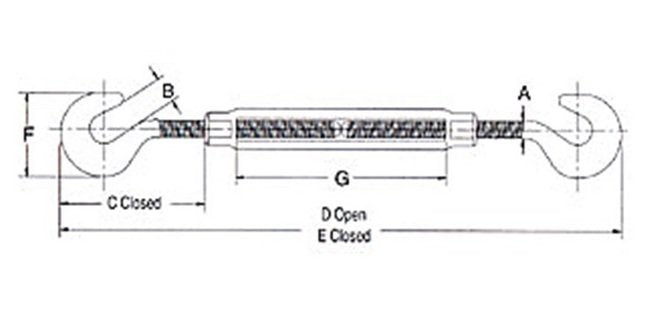

Product Specifications
Specifications A
1
Specifications B
1.25
Specifications C Closed
5.84
Specifications D Open
26.69
Specifications E Closed
20.69
Specifications F
4.25
Specifications G
6
Specifications Thread Dia Take Up In
1 x 6
Specifications Weight
9.33
Specifications Wll Lbs
5000
