Galvanized Drop Forged Turnbuckles Hook & Hook
Galvanized Drop Forged Turnbuckles Hook & Hook
SKU:WIR-1ab73e
Durable Galvanized Turnbuckles meeting FF-T-791b Type 1, Form 1 - Class 5. 2250 lbs WLL, hot dip galvanized, quenched & tempered. Ideal for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Hook & Hook
$49.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Hook & Hook
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

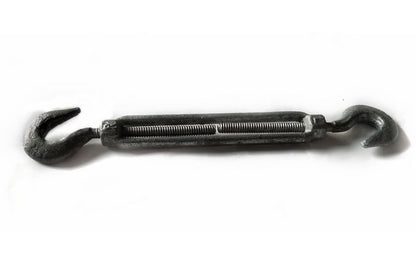

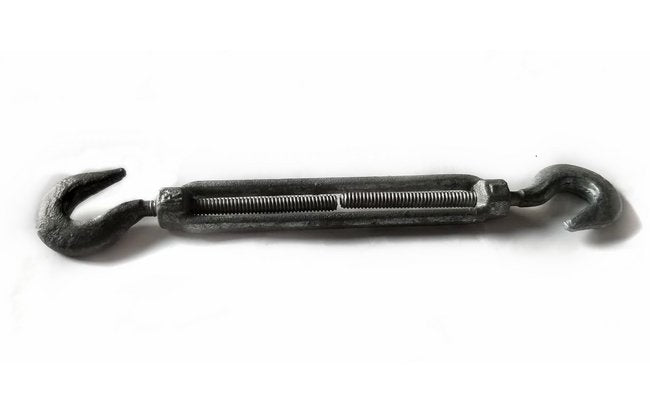

The Galvanized Drop Forged Turnbuckles Hook & Hook are engineered to meet the rigorous demands of federal specification FF-T-791b, Type 1, Form 1 - Class 5. With hot dip galvanization, quenched and tempered end fittings, and normalized bodies, these turnbuckles offer exceptional durability and strength. Featuring a 2.5 times proof load to ensure safety, these turnbuckles have a working load limit of 2250 lbs. Their precise dimensions, including 5/8 x 9 thread Dia & Take Up, make them ideal for industrial applications requiring reliable performance and compliance with industry standards.

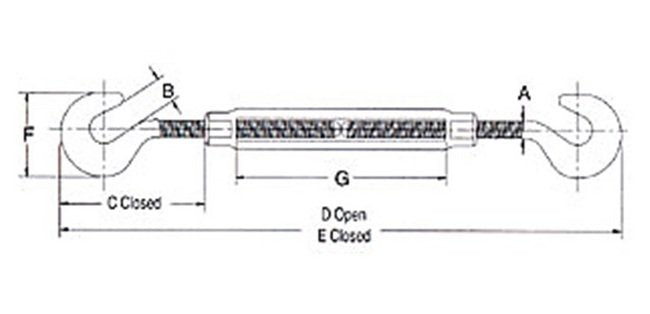

Product Specifications
Specifications A
0.63
Specifications B
0.84
Specifications C Closed
3.69
Specifications D Open
27.25
Specifications E Closed
18.25
Specifications F
2.81
Specifications G
9
Specifications Thread Dia Take Up In
5/8 x 9
Specifications Weight
3.13
Specifications Wll Lbs
2250
