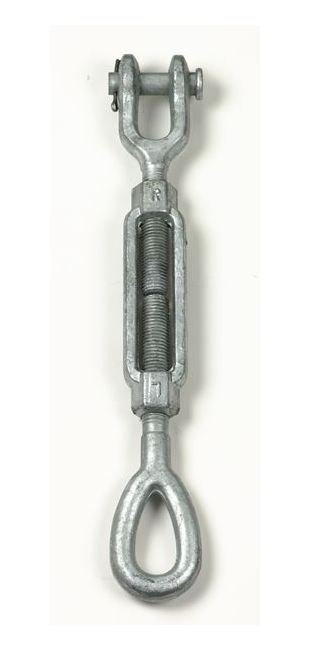

Galvanized Drop Forged Turnbuckles - Jaw & Eye
Galvanized Drop Forged Turnbuckles - Jaw & Eye
SKU:WIR-dd888c
High-strength Hot Dip Galvanized Turnbuckle meeting Federal Spec FF-T-791b, Type 1, Form 1 - Class 8. Ultimate safety & durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles - Jaw & Eye
$29.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles - Jaw & Eye
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckle with Jaw & Eye is precision engineered to meet the rigorous standards of Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. Featuring quenched and tempered end fittings, normalized bodies, and a safety factor of 2.5 times the working load limit, this turnbuckle ensures exceptional strength and durability. With a 5:1 ultimate load capacity, it provides reliable performance in demanding applications.

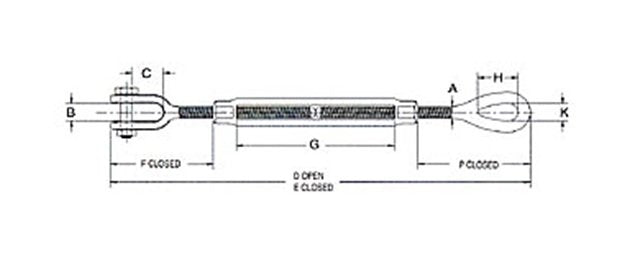

Product Specifications
Specifications A
0.31
Specifications B
0.47
Specifications C Closed
0.87
Specifications D Open
14.01
Specifications E Closed
9.51
Specifications F
1.98
Specifications G
4.5
Specifications H
0.94
Specifications K
0.44
Specifications Pin Diameter In
1/4
Specifications P Closed
2.09
Specifications Thread Dia Take Up In
5/16 x 4-1/2
Specifications Weight
0.47
Specifications Wll Lbs
800
