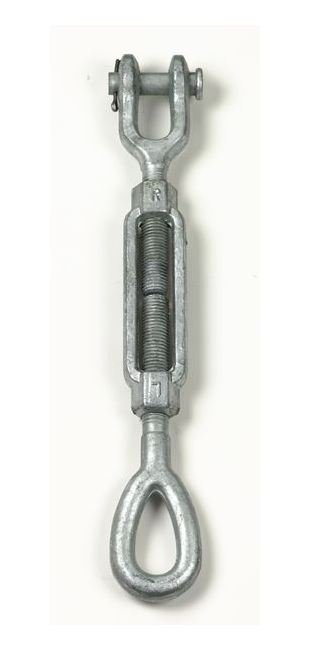

Galvanized Drop Forged Turnbuckles Jaw & Eye
Galvanized Drop Forged Turnbuckles Jaw & Eye
SKU:WIR-a8f999
Heavy-duty Galvanized Drop Forged Turnbuckle, meets FF-T-791b Type 1, Form 1 - Class 8. Ultimate load 5x WLL.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Jaw & Eye
$59.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Jaw & Eye
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye is a heavy-duty solution designed to meet stringent procurement standards. This product conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 8, ensuring exceptional quality and reliability. Featuring quenched and tempered end fittings, normalized bodies, and a 2.5 times working load limit proof load, this turnbuckle guarantees superior performance. With an ultimate load capacity of 5 times the working load limit, this product offers unmatched strength and durability. Ideal for applications requiring resilience and precision, this turnbuckle is a dependable choice for both consumer and institutional buyers.

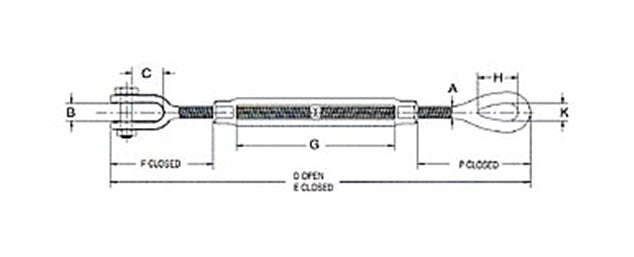

Product Specifications
Specifications A
0.75
Specifications B
0.94
Specifications C Closed
1.5
Specifications D Open
29.11
Specifications E Closed
20.11
Specifications F
4.18
Specifications G
9
Specifications H
2.09
Specifications K
1
Specifications Pin Diameter In
5/8
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 9
Specifications Weight
4.75
Specifications Wll Lbs
5,200
