Galvanized Drop Forged Turnbuckles Jaw & Eye - 1-1/2 x 18
Galvanized Drop Forged Turnbuckles Jaw & Eye - 1-1/2 x 18
SKU:WIR-32359e
Highly durable Galvanized Turnbuckles - Federal Spec FF-T-791b Type 1 Class 8, 2.5x proof load, ideal for heavy-duty applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Jaw & Eye - 1-1/2 x 18
$69.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Jaw & Eye - 1-1/2 x 18
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

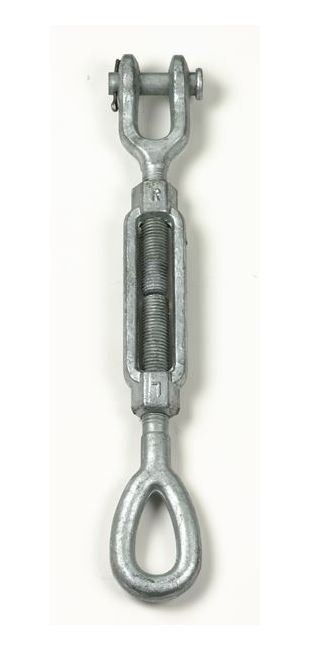

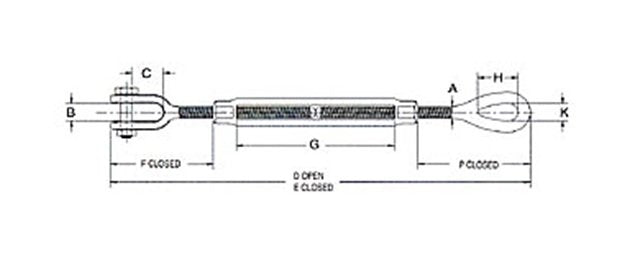

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye, meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 8, are engineered for durability and reliability. With end fittings that are quenched and tempered, and bodies normalized, these turnbuckles provide exceptional strength. Featuring a proof load 2.5 times the working load limit and an ultimate load of 5 times the working load limit, these turnbuckles ensure safety and performance. The dimensions, approximately (in inches): A: 1.5, B: 2.06, C Closed: 2.81, D Open: 56.25, E Closed: 38.25, F: 7.88, G: 18, H: 4.06, K: 2.12, P Closed: 8.62.
Product Specifications
Specifications A
1.5
Specifications B
2.06
Specifications C Closed
2.81
Specifications D Open
56.25
Specifications E Closed
38.25
Specifications F
7.88
Specifications G
18
Specifications H
4.06
Specifications K
2.12
Specifications Pin Diameter In
1-3/8
Specifications P Closed
8.62
Specifications Thread Dia Take Up In
1-1/2 x 18
Specifications Weight
35
Specifications Wll Lbs
21,400
