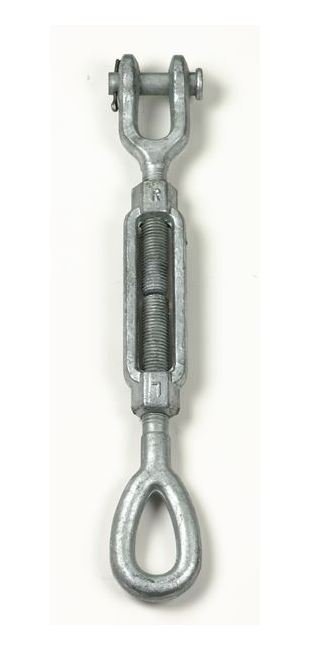

Galvanized Drop Forged Turnbuckles, Jaw & Eye - 1-1/2 x 24

Name: Galvanized Drop Forged Turnbuckles, Jaw & Eye - 1-1/2 x 24
Brand: Lexco Cable Manufacturing
SKU: WIR-d7291c
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-d7291c

High-quality Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye meeting Federal Spec FF-T-791b standards.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye are built to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards. With quenched and tempered end fittings and normalized bodies, these turnbuckles ensure reliability in demanding applications. Featuring a 2.5x proof load compared to the working load limit and 5x ultimate load, they offer exceptional strength and safety. The dimensions, approximations, and detailed specifications make these turnbuckles ideal for wire rope applications where durability and compliance are paramount.

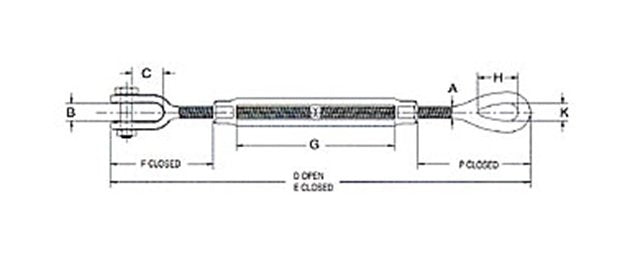

Product Specifications

Specifications A

1.5

Specifications B

2.06

Specifications C Closed

2.81

Specifications D Open

68.25

Specifications E Closed

44.25

Specifications F

7.88

Specifications G

Specifications H

4.06

Specifications K

2.12

Specifications Pin Diameter In

1-3/8

Specifications P Closed

8.62

Specifications Thread Dia Take Up In

1-1/2 x 24

Specifications Weight

39.18

Specifications Wll Lbs

21,400

Galvanized Drop Forged Turnbuckles, Jaw & Eye - 1-1/2 x 24
