Galvanized Drop Forged Turnbuckles Jaw & Eye - 1" x 24"

Name: Galvanized Drop Forged Turnbuckles Jaw & Eye - 1" x 24"
Brand: Lexco Cable Manufacturing
SKU: WIR-d91a17
Price: 78.99 USD
Availability: OutOfStock

SKU:WIR-d91a17

Durable Galvanized Turnbuckle - Meets Federal Spec FF-T-791b. High load capacity & reliability. Dimensions: 1" x 24". Buy Now!

$78.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

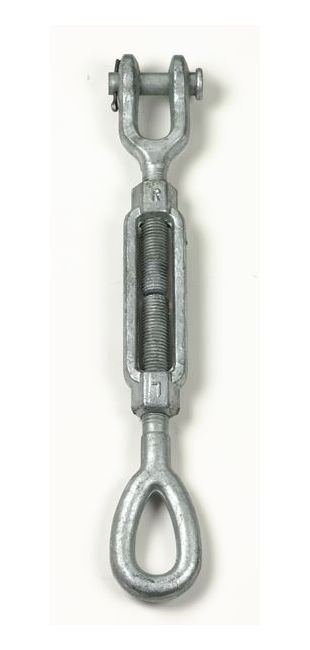

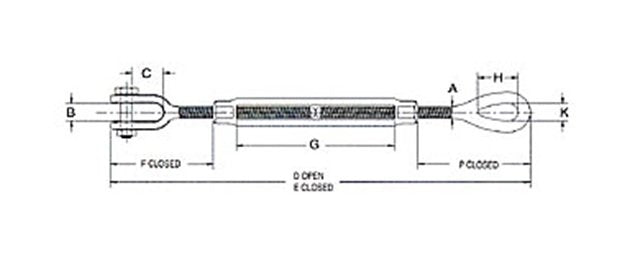

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye offers durability and reliability for various applications. Meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 8, it features quenched and tempered end fittings with normalized bodies. With a high proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures safety and performance. The dimensions, approximately: A - 1", B - 1.19", C Closed - 2.06", D Open - 62.89", E Closed - 38.89", F - 5.53", G - 24", H - 3", K - 1.44", P Closed - 6.36".

Product Specifications

Specifications A

Specifications B

1.19

Specifications C Closed

2.06

Specifications D Open

62.89

Specifications E Closed

38.89

Specifications F

5.53

Specifications G

Specifications H

Specifications K

1.44

Specifications Pin Diameter In

7/8

Specifications P Closed

6.36

Specifications Thread Dia Take Up In

1 x 24

Specifications Weight

Specifications Wll Lbs

10,000
