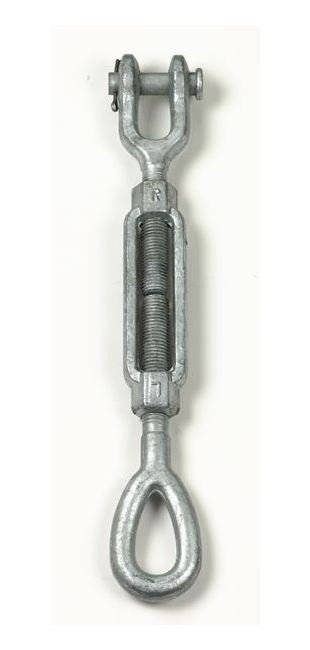

Galvanized Drop Forged Turnbuckles Jaw & Eye (5/8 x 9)

Name: Galvanized Drop Forged Turnbuckles Jaw & Eye (5/8 x 9)
Brand: Lexco Cable Manufacturing
SKU: WIR-c4c2e8
Price: 57.99 USD
Availability: OutOfStock

SKU:WIR-c4c2e8

Premium Hot Dip Galvanized Turnbuckle for Industrial Use, Conforms to Federal Spec FF-T-791b, Type 1, Form 1 - Class 8

$57.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye (5/8 x 9) is a premium wire rope hardware designed to meet the rigorous demands of industrial applications. This turnbuckle conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 8, ensuring exceptional quality and performance. With hot dip galvanization for corrosion resistance, quenched and tempered end fittings, and normalized bodies, this turnbuckle offers superior strength and durability. It has a proof load of 2.5 times the working load limit of 3,500 lbs, with an ultimate load capacity of 5 times the working load limit.

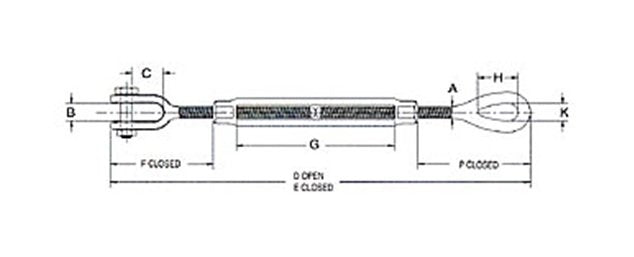

Product Specifications

Specifications A

0.63

Specifications B

0.75

Specifications C Closed

1.31

Specifications D Open

27.28

Specifications E Closed

18.28

Specifications F

3.5

Specifications G

Specifications H

1.75

Specifications K

0.88

Specifications Pin Diameter In

1/2

Specifications P Closed

3.9

Specifications Thread Dia Take Up In

5/8 x 9

Specifications Weight

3.06

Specifications Wll Lbs

3,500
