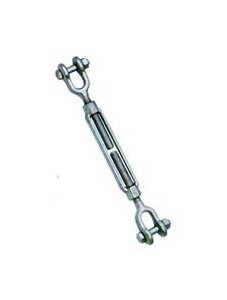

Galvanized Drop Forged Turnbuckles Jaw & Jaw
Galvanized Drop Forged Turnbuckles Jaw & Jaw
SKU:WIR-ad0a02
Reliable Galvanized Turnbuckles for heavy-duty applications, hot-dip galvanized steel with 500 lbs WLL.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Jaw & Jaw
$14.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Jaw & Jaw
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Drop Forged Turnbuckles Jaw & Jaw are built to endure heavy-duty applications with their Quenched and Tempered end fittings and hot-dip galvanized steel construction. Ideal for straight or in-line pulls, these turnbuckles feature UNC threads and are heat treated for maximum durability. With a Working Load Limit (WLL) of 500 lbs and precise dimensions, these turnbuckles ensure secure and reliable performance in various wire rope installations.

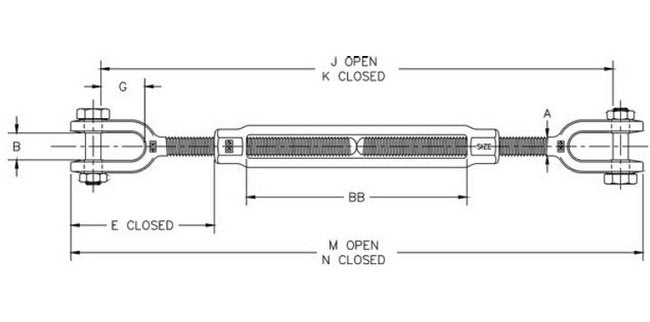

Product Specifications
Specifications A
0.25
Specifications B
0.45
Specifications Bb
4.07
Specifications E Closed
1.66
Specifications G
0.64
Specifications J Open
11.19
Specifications K Closed
7.19
Specifications M Open
12.18
Specifications N Closed
8.18
Specifications Pin Diam
.25 "
Specifications Thread Dia Take Up In
1/4 x 4
Specifications Weight
0.37
Specifications Wll Lbs
500
